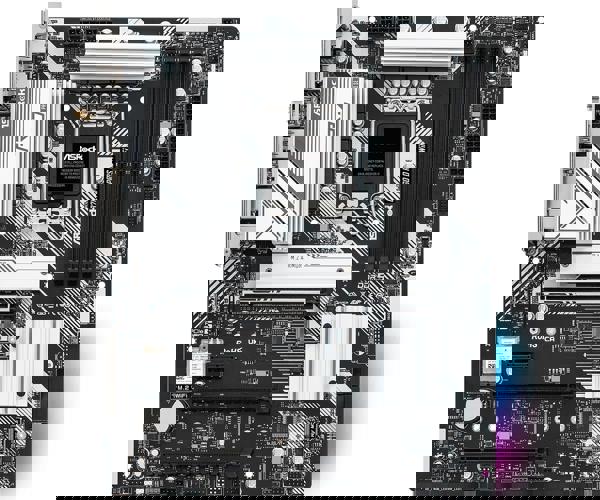

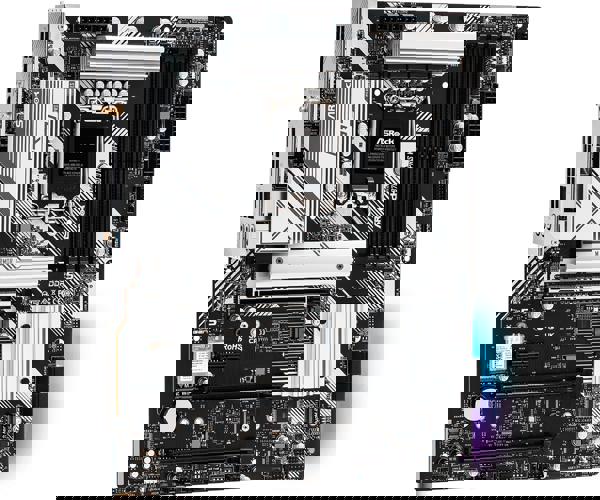

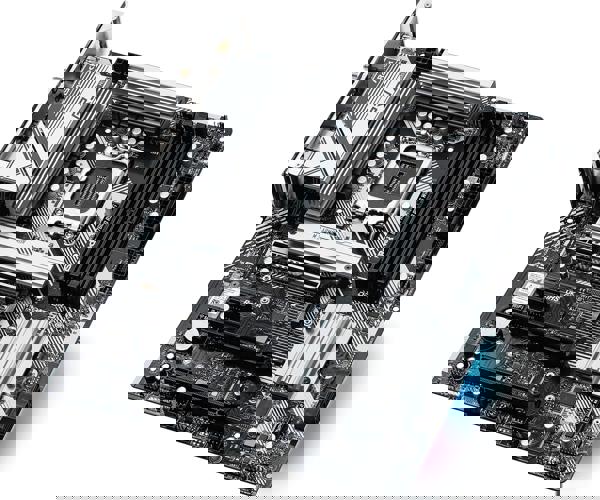

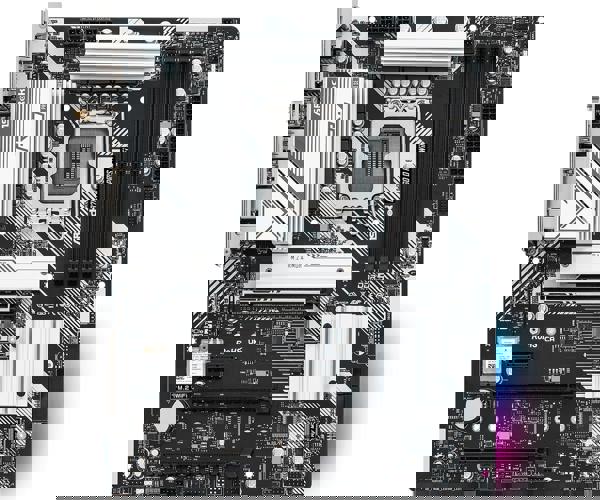

ASROCK B760 PRO RS DDR5 WIFI
The ASRock B760 Pro RS DDR5 WiFi is an ATX motherboard supporting 12th/13th Gen Intel processors, DDR5 memory, PCIe 4.0, triple M.2 slots, WiFi 6E, and 2.5Gb LAN—delivering next-gen speed, stable power, and reliable connectivity.
Features
Overview
The ASRock B760 Pro RS DDR5 WiFi is a high-performance ATX motherboard designed to harness the full potential of 12th and 13th Gen Intel Core processors using the Intel B760 chipset. With support for next-generation DDR5 memory, PCIe 4.0, WiFi 6E, and robust power delivery, it is ideal for gaming, productivity, and future-ready PC builds. The Pro RS series combines performance, reliability, and professional aesthetics with premium components and thoughtful engineering.
Key Features & Specifications
Processor Support
-
Supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors
-
LGA 1700 CPU socket
-
Intel Turbo Boost Technology support (processor-dependent)
Power Design
-
12+1+1 power phase design with premium Dr.MOS for efficient, stable power delivery
-
High-density PCB and solid power connectors for improved thermal performance and reliability
-
Suitable for high-end CPUs and moderate overclocking
Memory
-
4 x DDR5 DIMM slots, dual-channel memory architecture
-
Supports up to 192GB DDR5 memory
-
Memory speeds up to 7200+ MHz (OC)
-
Intel XMP 3.0 profile support for easy memory tuning
Expansion Slots
-
1 x PCIe 4.0 x16 slot (Steel Slot reinforced for heavy GPUs)
-
1 x PCIe 4.0 x16 slot (x4 mode)
-
1 x PCIe 3.0 x1 slot for additional expansion cards
Storage Options
-
3 x Hyper M.2 slots (PCIe Gen4 x4) for ultra-fast NVMe SSDs
-
4 x SATA3 ports supporting RAID 0, 1, 5, and 10
-
M.2 heatsink coverage to keep SSDs running cool under heavy load
Networking & Wireless
-
Dragon 2.5Gb LAN for high-speed wired networking
-
WiFi 6E (802.11ax) with Bluetooth 5.3 for ultra-fast wireless connectivity and low latency
USB & I/O Connectivity
-
Rear I/O:
-
1 x USB 3.2 Gen2x2 Type-C
-
2 x USB 3.2 Gen2 Type-A
-
4 x USB 3.2 Gen1 ports
-
-
Front panel headers for additional USB 3.2 Gen1/Gen2 and USB 2.0 support
-
HDMI and DisplayPort outputs for integrated Intel UHD Graphics
Audio
-
7.1 CH HD Audio (Realtek ALC897/ALC1220 Codec depending on batch)
-
Nahimic Audio technology for immersive gaming and media experiences
Cooling & Thermal Design
-
Extended VRM heatsinks and optimized thermal pads for improved heat dissipation
-
Multiple PWM/DC fan headers with complete BIOS and software control
-
Smart fan tuning to balance cooling performance and noise levels
BIOS & Software
-
ASRock UEFI BIOS with EZ Mode and Advanced Mode for tuning and monitoring
-
ASRock utilities for driver updates, hardware monitoring, and network optimization
-
ASRock Polychrome RGB Sync for controlling onboard RGB LEDs and compatible devices
Form Factor & Aesthetics
-
ATX form factor (30.5 cm x 24.4 cm)
-
Clean black-and-silver PCB design with integrated RGB lighting accents
-
Reinforced PCIe slots and premium components for long-term reliability
Specifications
| CPU | SUPPORTS 14TH, 13TH & 12TH GEN INTEL CORE PROCESSORS (LGA1700) , SUPPORTS INTEL HYBIRD TECHNOLOGY , SUPPORTS INTEL TURBO BOOST MAX 3.0 TECHNOLOGY , SUPPORTS INTEL THERMAL VELOCITY BOOST (TVB) , SUPPORTS INTEL ADAPTIVE BOOST TECHNOLOGY (ABT) |
|---|---|
| CHIPSET | B760 |
| MEMORY | DUAL CHANNELS DDR5 MEMORY TECHNOLOGY , 4 X DDR5 DIMM SLOTS , SUPPORTS DDR5 NON-ECC, UN-BUFFERED MEMORY UP TO 7200+ (OC) MAX. CAPACITY OF SYSTEM MEMORY PROFILE : 256GB , SUPPORTS INTEL EXTREME MEMORY PROFILE (XMP) 3.0 |
| LAN + WIFI + BLUETOOTH | 2.5 GIGABIT LAN 10/100/1000/2500 MB/S , DRAGON RTL8125BG , SUPPORTS DRAGON 2.5 LAN SOFTWARE , SMART AUTO ADJUST BANDWIDTH CONTROL , VISUAL USER FRIENDLY UI , VISUAL NETWORK USAGE STATISTICS , OPTIMIZED DEFAULT SETTING FOR GAME , BROWSER , AND STREAMING MODES , USER CUSTOMIZED PRIORITY CONTROL , 802.11AX WI-FI 6E MODULE , SUPPORTS IEEE 802.11a/b/g/n/ac/ax , SUPPORTS DUAL-BAND 2X2 WITH EXTENDED 6GHz BAND SUPPORT , 2 ANTENNAS TO SUPPORT 2 (TRANSMIT) X 2 (RECEIVE) DIVERSITY TECHNOLOGY , SUPPORTS BLUETOOTH 5.3 + HIGH SPEED CLASS II , SUPPORTS MU-MIMO |
| AUDIO | 7.1 CH HD AUDIO (REALTEK ALC897 AUDIO CODEC) NAHIMIC AUDIO |
| EXPANSION SLOTS | 1 X PCIe 5.0 X 16 SLOT (PCIE1), SUPPORTS X16 MODE , 1 X PCIe 4.0 X16 SLOT (PCIE3), SUPPORTS X4 MODE , 1 X PCIe 3.0 X16 SLOT (PCIE4) , SUPPORTS X1 MODE , 1 X PCIe 3.0 x1 SLOT (PCIE2) , 1 X M.2 SOCKET (KEY E) , SUPPORTS TYPE 2230 WIFI/BT PCIe WIFI MODULE AND INTEL CNVio/CNVio2 (INTEGRATED WIFI/BT) , SUPPORTS AMD CROSSFIRE |
| STORAGE INTERFACES | 1 X HYPER M.2 SOCKET (M2_1, KEY M ), SUPPORTS TYPE (2260/280 PCIe GEN4X4 (64GB/S) MODE , 1 X M.2 SOCKET ( M2_2, KEY M) SUPPORTS TYPE 2260/2280 PCIe GEN4X2 (32GB/S) MODE , 1 X HYPER M.2 SOCKET (M2_3, KEY M ), SUPPORTS TYPE 2260/2280 PCIe GEN4X4 (64GB/S) MODE , 4 X SATA3 6.0 GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X eDP SIGNAL CONNECTOR , 1 X SPI TPM HEADER , 1 X POWER LED AND SPEAKER HEADER , 2 X RGB LED HEADERS , 2 X ADRESSABLE LED HEADERS , 1 X CPU FAN CONNECTOR (4-PIN) , 1 X CPU/WATER PUMP FAN CONNECTOR (4-PIN) (SMART FAN SPEED CONTROL) , 5 X CHASSIS/WATER PUMP FAN CONNECTORS (4-PIN) (SMART FAN SPEED CONTROL) , 1 X 24 PIN ATX POWER CONNECTOR , 2 X 8 PIN 12V POWER CONNECTORS ( HI-DENSITY CONNECTOR ) , 1 X FRONT PANEL AUDIO CONNECTOR , 1 X THUNDERBOLT AIC CONNECTOR ( 5-PIN) ( SUPPORTS ASROCK THUNDERBOLT 4 AIC CARD) , 1 X USB 2.0 HEADER ( SUPPORTS 2 USB 2.0 PORTS) , 1 X USB 3.2 GEN1 HEADER ( SUPPORTS 2 USB 3.2 GEN1 PORTS) 1 X FRONT PANEL TYPE C USB 3.2 GEN 2 HEADER (10GB/S) |

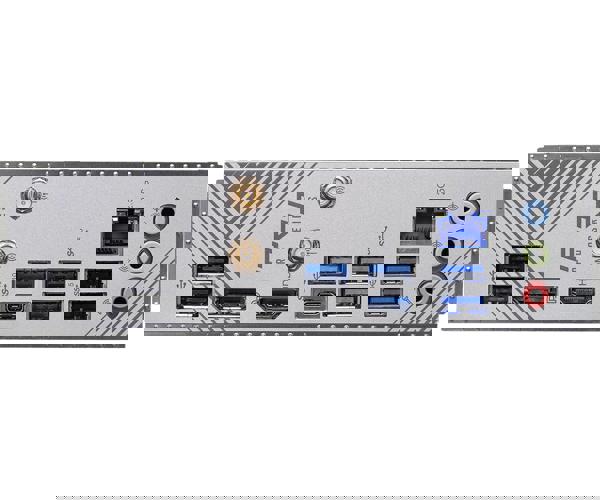

| BACK PANEL CONNECTORS | 2 X ANTENNA PORTS , 1 X HDMI PORT , 1 X DISPLAY PORT 1.4 , 1 X USB 3.2 GEN2 TYPE-A PORT ( 10GB/S) , 1 X USB 3.2 GEN2 TYPE-C PORT (10GB/S) , 4 X USB 3.2 GEN1 PORTS , 2 X USB 2.0 PORTS , 1 X RJ-45 LAN PORT , HD AUDIO JACKS: LINE IN/ FRONT SPEAKER / MICROPHONE |
| SIZE | |
| UNIQUE FACTORS | SUPERB PRODUCTIVITY , PCIe GEN5 (GRAPHICS) , DUAL CHANNEL DR5 , ROCK - SOLID DURALIBILITY , 10+1+1 POWER PHASE , 50A DR.MOS FOR VCORE+GT , PRE-INSTALLED I/O SHIELD , ULTRAFAST CONNECTIVITY , 2.5G LAN , 802.11ax WI-FI 6E MODULE , EZ UPDATE , ASROCK AUTO DRIVE INSTALLER , EZ TROUBLESHOOTER. |
