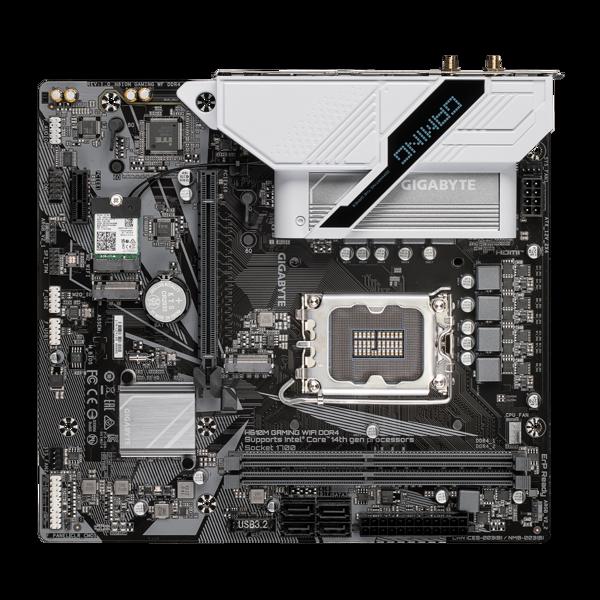

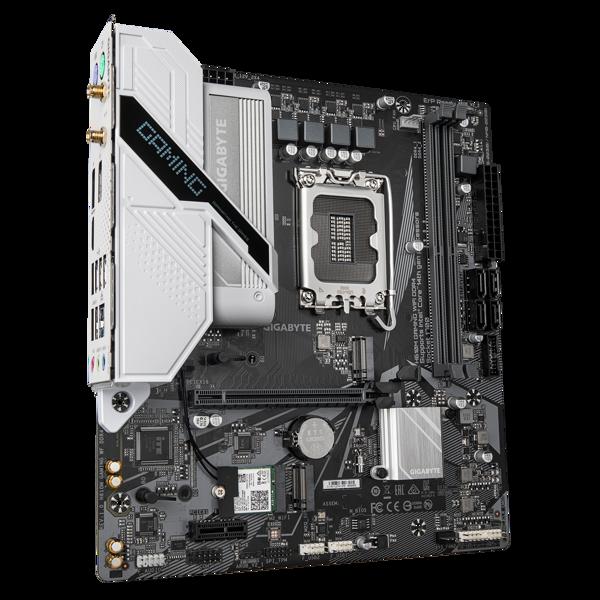

GIGABYTE H610M GAMING DDR4 WIFI
GIGABYTE H610M Gaming DDR4 WiFi motherboard supports 12th to 14th Gen Intel processors, featuring DDR4 memory, PCIe 4.0, integrated WiFi, highspeed storage options, durable power delivery, and enhanced audio for a stable, immersive gaming experience.
Features
The GIGABYTE H610M Gaming DDR4 WiFi motherboard is engineered to deliver reliable performance, versatile connectivity, and solid durability for gamers and mainstream PC builders using 12th to 14th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket.
Key Features and Specifications:
Processor Support
-
Compatible with 12th to 14th Gen Intel processors
-
LGA 1700 socket ensuring full support for high-performance CPUs
Memory
-
Dual-channel DDR4 memory architecture
-
Supports up to 64GB DDR4 RAM (2 DIMM slots)
-
Memory speed support up to 3200 MHz (OC) for smooth multitasking and gaming
Graphics & Expansion
-
1 x PCIe 4.0 x16 slot for latest-generation graphics cards
-
Integrated Intel UHD Graphics support (processor-dependent) via HDMI and D-Sub outputs
-
PCIe 3.0 x1 slot for additional expansion cards
Storage
-
1 x PCIe 3.0 x4 M.2 slot for NVMe SSDs offering high-speed data access
-
4 x SATA 6Gb/s ports for additional HDD/SSD storage
Connectivity
-
Integrated Intel WiFi for high-speed wireless networking
-
Gigabit Ethernet (LAN) for stable wired connectivity
-
Multiple USB ports including USB 3.2 Gen 1 Type-A, USB 2.0, and internal headers for front-panel connectivity
Audio
-
High-quality Realtek Audio Codec
-
Delivers clear and immersive sound for gaming and entertainment
Durability & Cooling
-
GIGABYTE Ultra Durable design with solid capacitors and reinforced PCB for longevity
-
Smart Fan 6 technology with multiple fan headers, offering precise cooling control
Additional Features
-
Q-Flash support for easy BIOS updates
-
APP Center & BIOS Setup with intuitive interface for system tuning
-
Enhanced surge protection for critical components
Conclusion
The GIGABYTE H610M Gaming DDR4 WiFi is a compact, feature-rich micro-ATX motherboard ideal for cost-effective gaming or productivity builds. With DDR4 support, PCIe 4.0 graphics compatibility, fast storage options, built-in WiFi, and Gigabyte’s signature durability, it provides an excellent balance of performance, connectivity, and reliability.
Specifications
| CPU | SUPPORTS 12TH, 13TH AND 14TH GEN INTEL CORE PROCESSORS (LGA1700) |
|---|---|
| CHIPSET | H610 |
| MEMORY | 2 X DIMM SLOTS (64GB MAX) DDR4 UPTO 3200MHZ |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT , 2 X DISPLAY PORT |
| LAN + WIFI + BLUETOOTH | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps), Intel® Wireless- AC 9560 (PCB rev. 1.0) WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH V5.1 |
| AUDIO | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, 7.1-channel audio, access the audio software for audio settings. |
| EXPANSION SLOTS | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| STORAGE INTERFACES | 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2), 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support), 4 x SATA 6Gb/s connectors |
| INTERNAL I/O CONNECTORS | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 2 x addressable RGB Gen2 LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jumper |

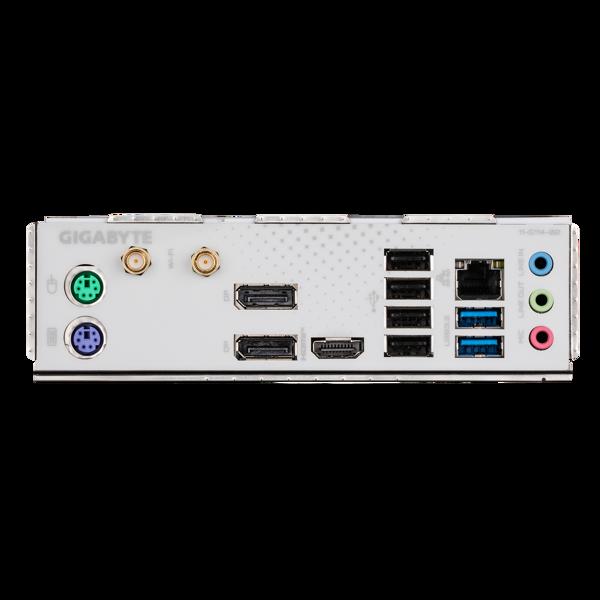

| BACK PANEL CONNECTORS | 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 2 x SMA antenna connectors (2T2R), 2 x DisplayPorts, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | Support for GIGABYTE Control Center (GCC), Support for Q-Flash |
