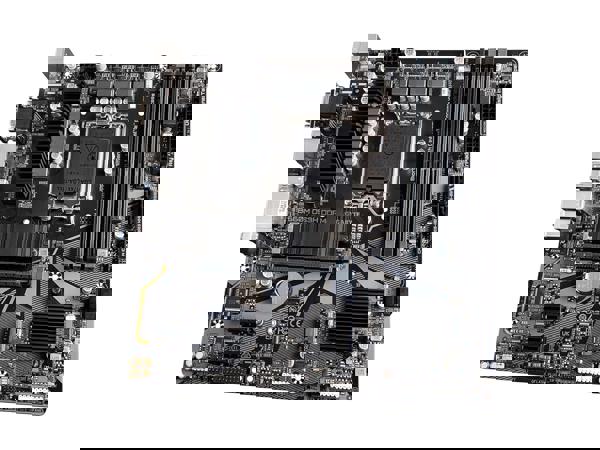

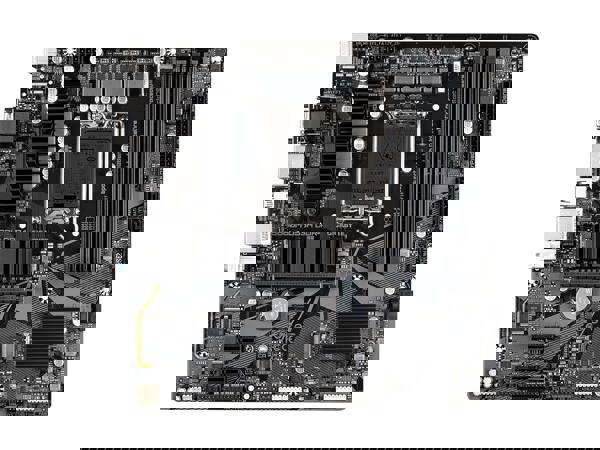

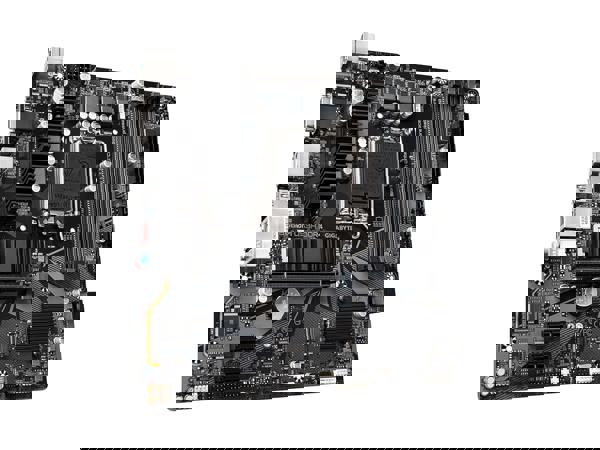

GIGABYTE B660M DS3H DDR4
The GIGABYTE B660M DS3H DDR4 is a reliable micro-ATX motherboard supporting Intel 12th to 14th Gen CPUs, DDR4 up to 5333 MHz, PCIe 4.0, dual M.2 slots, Smart Fan 6 cooling, and Q-Flash Plus BIOS updates for seamless performance.
Features
The GIGABYTE B660M DS3H DDR4 is a micro-ATX motherboard built to support Intel’s 12th to 14th Gen Core, Pentium Gold, and Celeron processors, offering a solid foundation for mainstream gaming and productivity systems. With high-speed DDR4 support, PCIe 4.0 connectivity, and reliable thermal and power solutions, it balances performance, value, and durability.
Key Features & Specifications
Processor Support
-
Compatible with 12th to 14th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket.
-
Optimized for hybrid CPU architecture with efficient power distribution.
Memory
-
Supports DDR4 memory up to 128GB across 4 DIMM slots.
-
Achieves speeds up to DDR4 5333 (OC).
-
Dual-channel memory architecture with Intel XMP profile support for easy tuning.
Power Design
-
6+2+1 hybrid digital VRM design ensures stable power delivery for CPUs with higher core counts.
-
High-quality components for enhanced durability and thermal stability.
Storage
-
2x PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs.
-
4x SATA 6Gb/s ports for additional storage options.
-
RAID 0, 1, 5, and 10 support for performance or data redundancy.
Expansion Slots
-
1x PCIe 4.0 x16 slot for modern graphics cards.
-
1x PCIe 3.0 x1 slot for additional expansion cards.
Networking
-
Realtek Gigabit Ethernet LAN for fast and stable wired connectivity.
Audio
-
High Definition Audio (7.1-channel) powered by Realtek Audio Codec.
-
Audio Noise Guard reduces interference for clear sound quality.
USB Interfaces
-
Rear and internal USB options including:
-
USB 3.2 Gen 1 Type-A ports for high-speed devices.
-
USB 2.0 ports and internal headers for peripherals.
-
Cooling and Thermal Design
-
Smart Fan 6 technology with multiple temperature sensors.
-
Hybrid fan headers supporting PWM/DC modes for precise control and quiet operation.
Additional Features
-
Q-Flash Plus allows BIOS updates without installing CPU, RAM, or GPU.
-
Reinforced PCIe and memory slots enhance durability against wear and tear.
-
User-friendly BIOS interface for both beginners and enthusiasts.
Form Factor
-
Micro-ATX design, compatible with compact and mid-tower PC cases.
In summary: The GIGABYTE B660M DS3H DDR4 delivers reliable performance with DDR4 memory support, PCIe 4.0 connectivity, fast storage options, and stable power delivery—making it an excellent choice for budget-conscious users who want a modern Intel platform without compromising on essential features.
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B660 |
| MEMORY | SUPPORT FOR DDR4 5333(OC) /DDR4 5133(OC) /DDR4 5000(OC) /4933(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4300(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3800(OC) /3733(OC) /3666(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3300(OC)/3200 /3000 /2933 /2666 /2400 /2133 MT/s MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5GBPS/1 GBPS/100 MBPS ) |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , RUNNING AT X16 , 2 X PCI EXPRESS X1 SLOTS |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 2260/2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2260/2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 3 X SYSTEM FAN HEADERS , 1 X ADDRESSABLE LED STRIP HEADER ,1 X RGB LED STRIP HEADER , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) ,1 X SERIAL PORT HEADER , 1 X PARALLEL PORT HEADER , 1 X S/PDIF OUT HEADER , 1 X Q-FLASH PLUS BUTTON , 1 X RESET BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |
| BACK PANEL CONNECTORS | 2 X USB 2.0/1.1 PORTS , 1 X PS/2 KEYBOARD/MOUSE PORT ,1 X D-SUB PORT , 1 X HDMI PORT , 2 X DISPLAY PORTS , 3 X USB 3.2 GEN 1 PORTS , 1 X USB TYPE-C PORT , WITH USB 3.2 GEN 2 SUPPORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR APP CENTER , SUPPORT FOR Q FLASH PLUS , SUPPORT FOR Q-FLASH , SUPPORT FOR XPRESS INSTALL |
