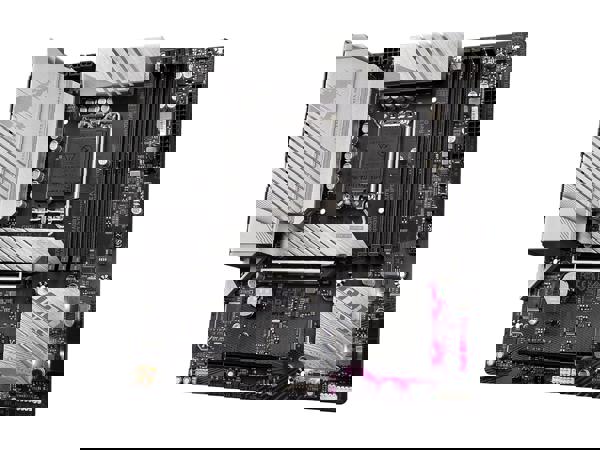

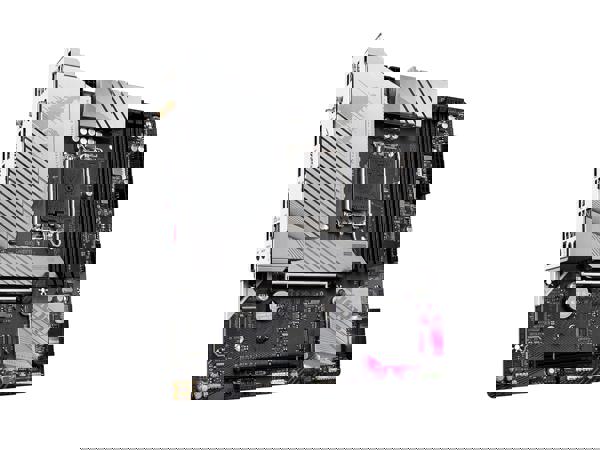

GIGABYTE B760M AORUS ELITE AX DDR5
The GIGABYTE B760M AORUS ELITE AX DDR5 motherboard offers Intel® 12th to 14th Gen CPU support, fast DDR5 memory, PCIe 4.0, dual M.2 slots, Wi-Fi 6E, 2.5GbE LAN, and advanced cooling for reliable, high-performance gaming.
Features
The GIGABYTE B760M AORUS ELITE AX DDR5 is a feature-rich micro-ATX motherboard designed for gamers and creators who demand cutting-edge performance with compact form factor flexibility. Built on Intel’s B760 chipset, it supports 12th to 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, delivering exceptional computing power.
Key Features and Specifications:
Processor and Memory Support
-
Socket LGA1700, compatible with Intel® 12th to 14th Gen CPUs
-
Supports dual-channel DDR5 memory, up to 128GB with speeds exceeding 7600 MT/s (OC)
-
Optimized memory layout for stable overclocking and reduced latency
Expansion and Storage
-
PCIe 4.0 x16 slot for high-performance GPUs
-
Two PCIe 4.0 x4 M.2 slots with thermal guards for blazing-fast NVMe SSD performance
-
Four SATA 6Gb/s ports for additional storage options
Networking and Connectivity
-
Intel® Wi-Fi 6E (802.11ax) for ultra-fast wireless connectivity with lower latency
-
2.5GbE LAN ensuring stable, high-speed wired networking
-
Bluetooth® 5.2 for peripheral support
Audio and USB Ports
-
High-definition Realtek audio codec for immersive sound quality
-
Multiple USB 3.2 Gen2 and USB 2.0 ports for fast data transfer and device compatibility
Thermal Design and Durability
-
Advanced thermal solution with enlarged heatsinks and M.2 thermal guards
-
Ultra Durable™ components, including solid pin power connectors and PCIe armor for improved longevity
-
Smart Fan 6 technology featuring hybrid fan headers and temperature sensors for precise cooling control
Aesthetics and Customization
-
AORUS RGB Fusion lighting for synchronized RGB effects across supported components
-
Compact micro-ATX form factor, perfect for small yet powerful gaming or workstation builds
Conclusion
The GIGABYTE B760M AORUS ELITE AX DDR5 delivers a powerful blend of next-gen performance, robust connectivity, efficient cooling, and stylish design. Ideal for gamers, content creators, and PC enthusiasts, it ensures a future-ready platform with uncompromised reliability.
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B760 |
| MEMORY | SUPPORT FOR DDR5 7800(OC) / 7600(OC) / 7400(OC) /7200(OC) /7000(OC) /6800(OC) /6600(OC) /6400(OC) /6200(OC) /6000(OC) /5800(OC) /5600(OC) /5400(OC) /5200(OC) /4800 /4000 MT/s MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5GBPS/1 GBPS/100 MBPS ) INTEL WIFI 6E AX211 (FOR PCB REV. 1.0) , WIFI a,b,g,n,ac,ax, SUPPORTING 2.4/5/6 GHz CARRIER FREQUENCY BANDS , BLUETOOTH 5.3 , SUPPORT FOR 11AX 160MHz WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE , REALTEK WIFI WIFI 6E RTL8852CE (FOR PCB REV. 1.1) , WIFI a,b,g,n,ac,ax, SUPPORTING 2.4/5/6 GHz CARRIER FREQUENCY BANDS , BLUETOOTH 5.3 , SUPPORT FOR 11AX 160MHz WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X16 , 2 X PCI EXPRESS X16 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 22110/2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 2 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 22110/2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB, M2M_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER ,1 X CPU FAN/WATER COOLING PUMP HEADER , 3 X SYSTEM FAN HEADERS ,1 X SYSTEM FAN/WATER COOLING PUMP HEADER , 2 X ADDRESSABLE LED STRIP HEADER ,2 X RGB LED STRIP HEADERS , 3 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER ,1 X USB TYPE-C HEADER,WITH USB 3.2 GEN 2 SUPPORT , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X RESET BUTTON , 1 X Q-FLASH PLUS BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

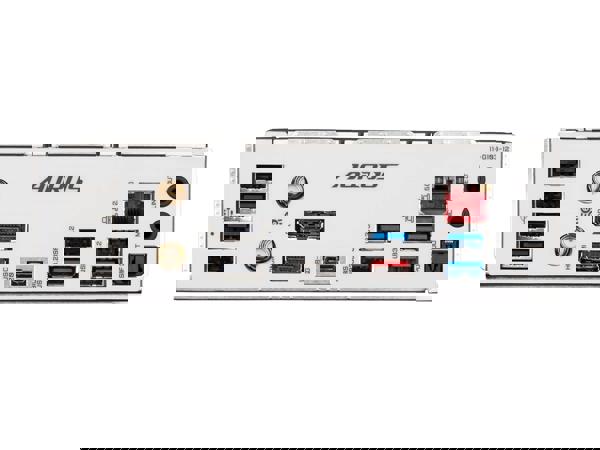

| BACK PANEL CONNECTORS | 1 X USB TYPE-C PORT , WITH USB 3.2 GEN 2 SUPPORT , 1 X USB 3.2 GEN 2 TYPE-A PORT (RED) , 4 X USB 3.2 GEN 1 PORTS , 4 X USB 2.0/1.1 PORTS , 2 X SMA ANTENNA CONNECTORS (2T2R) , 1 X HDMI PORT , 1 X DISPLAY PORT , 1 X RJ-45 , 1 X OPTICAL S/PDIF OUT CONNECTOR , 2 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL . SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
