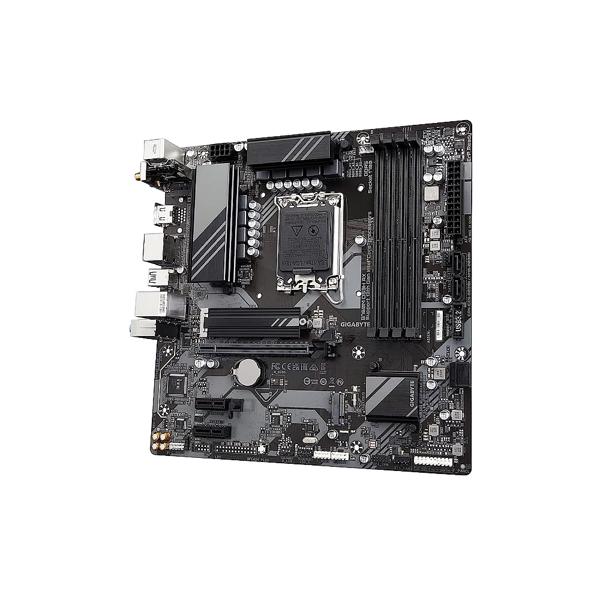

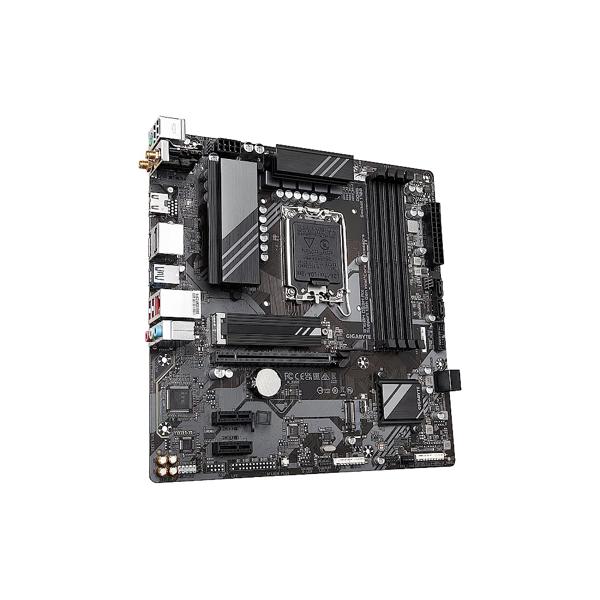

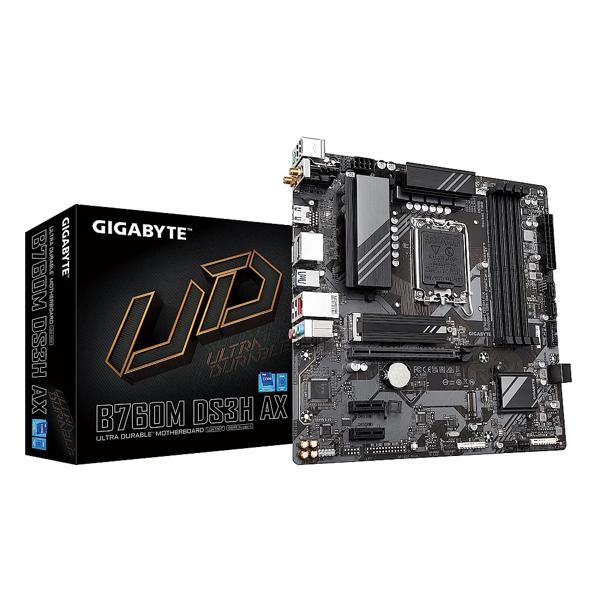

GIGABYTE B760M DS3H AX DDR5
The Gigabyte B760M DS3H AX DDR5 delivers next-gen performance with DDR5 memory support, PCIe 4.0, dual M.2 slots, Wi-Fi 6, and advanced cooling—offering exceptional stability, connectivity, and speed for powerful gaming and productivity build.
Features
Gigabyte B760M DS3H AX DDR5 — Compact Power, Next-Gen Speed
The Gigabyte B760M DS3H AX DDR5 is a high-performance micro-ATX motherboard built for Intel 12th to 14th Gen Core processors, combining cutting-edge DDR5 memory support, fast networking, and robust durability in a space-efficient design. Engineered for gaming, content creation, and productivity, it ensures your PC stays fast, stable, and future-ready.
Key Features:
-
Latest Intel Platform
-
Supports Intel 12th to 14th Gen Core, Pentium Gold, and Celeron processors on the LGA 1700 socket.
-
Optimized power delivery ensures reliable performance under heavy workloads.
-
-
High-Speed Memory
-
Dual-channel DDR5 support, up to 128GB capacity.
-
XMP 3.0 profile support allows memory overclocking for maximum bandwidth.
-
-
PCIe 4.0 Expansion
-
PCIe 4.0 x16 slot for modern graphics cards.
-
Two PCIe 4.0 M.2 slots for ultra-fast NVMe SSD storage.
-
-
Next-Gen Networking
-
Intel Wi-Fi 6 (802.11ax) with faster wireless speeds and low latency.
-
2.5GbE LAN for high-speed wired networking.
-
-
Comprehensive Connectivity
-
Multiple USB 3.2 Gen1 and USB 2.0 ports for peripherals.
-
HDMI and DisplayPort outputs for integrated graphics solutions.
-
-
Enhanced Thermal Design
-
Advanced M.2 thermal guards prevent SSD throttling.
-
Durable heatsinks for VRM and chipset cooling ensure consistent performance.
-
-
Ultra Durable Build Quality
-
6+2+1 phase digital VRM with premium capacitors for efficient power delivery.
-
Reinforced PCIe slot and solid pin power connectors enhance longevity.
-
-
Smart Fan 6 Technology
-
Hybrid fan headers and precise temperature sensors for optimal cooling control.
-
Multiple fan curve profiles for quiet or performance-focused operation.
-
-
Q-Flash Plus BIOS Update
-
Easily update BIOS without installing CPU, RAM, or GPU.
-
In summary:
The Gigabyte B760M DS3H AX DDR5 motherboard combines next-generation DDR5 memory, PCIe 4.0 support, Wi-Fi 6 connectivity, and durable engineering in a compact micro-ATX form factor—perfect for building a reliable, high-speed system for gaming or productivity.
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B760 |
| MEMORY | 4 X DIMM DDR5 RAM SLOTS SUPPORT UPTO 7600(OC) MT/s MEMORY MODULES MAX MEMORY SUPPORT UPTO 192 GB |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT , 2 X DISPLAY PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5GBPS/1 GBPS/100 MBPS) , AMD WIFI 6E RZ608(MT7921), (FOR PCB REV 1.0) , WIFI a,b,g,n,ac,ax, SUPPORTING 2.4/5/6 GHz CARRIER FREQUENCY BANDS , BLUETOOTH 5.2 , SUPPORT FOR 11AX 80MHz WIRELESS STANDARD AND UP TO 1.2 GBPS DATA RATE , INTEL WIFI 6E AX210 (PCB REV. 1.1) , WIFI a,b,g,n,ac,ax SUPPORTING 2.4/5/6 GHz CARRIER FREQUENCY BANDS , BLUETOOTH 5.3 , SUPPORT FOR 11AX 160MHz WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE , INTEL WIFI 6E AX211 (FOR PCB REV. 1.2) , WIFI a,b,g,n,ac,ax, SUPPORTING 2.4/5/6 GHZ CARRIER FREQUENCY BANDS , BLUETOOTH 5.3 , SUPPORT FOR 11AX 160MHz WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE , REALTEK WIFI 6E RTL8852CE (FOR PCB REV. 1.3) , WIFI a,b,g,n,ac,ax, SUPPORTING 2.4/5/6 GHz CARRIER FREQUENCY BANDS , BLUETOOTH 5.3 , SUPPORT FOR 11AX 160MHz WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE . |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X16 ,2 X PCI EXPRESS X1 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 3 X SYSTEM FAN HEADERS , 1 X ADDRESSABLE LED STRIP HEADER ,1 X RGB LED STRIP HEADERS , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X S/PDIF OUT HEADER , 1 X Q-FLASH PLUS BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

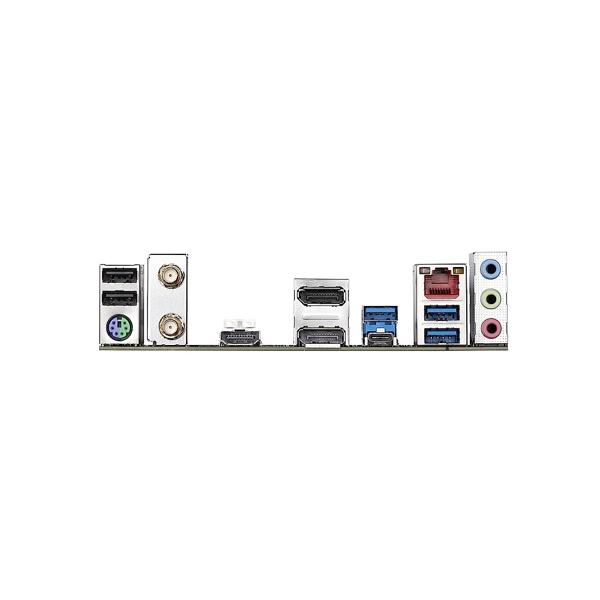

| BACK PANEL CONNECTORS | 2 X USB 2.0/1.1 PORTS , 1 X PS/2 KEYBOARD/MOUSE PORT 2 X SMA ANTENNA CONNECTORS (2T2R) , 1 X HDMI PORT , 2 X DISPLAYPORTS , 3 X USB 3.2 GEN 1 PORTS , 1 X USB TYPE-C PORT, WITH USB 3.2 GEN 2 SUPPORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL . SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
