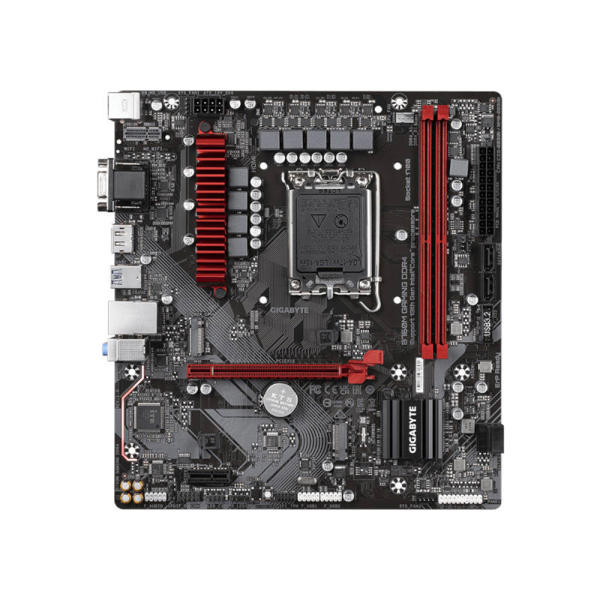

GIGABYTE B760M GAMING DDR4
The GIGABYTE B760M GAMING DDR4 motherboard supports Intel 12th to 14th Gen processors, dual-channel DDR4 memory, PCIe 4.0, dual M.2 slots, Wi-Fi 6, 2.5GbE LAN, and Smart Fan 6, delivering reliable performance and connectivity for gaming builds.
Features
The GIGABYTE B760M GAMING DDR4 motherboard is engineered to deliver reliable performance, robust connectivity, and gamer-focused features for Intel’s 12th to 14th Gen Core processors. Based on the Intel B760 chipset, this micro-ATX motherboard combines DDR4 memory efficiency, high-speed PCIe 4.0 expansion, and strong thermal solutions, making it a practical choice for building a powerful and cost-effective gaming PC.
Key Features & Specifications
1. CPU Support
-
Supports Intel 12th to 14th Gen Core, Pentium Gold, and Celeron processors
-
LGA 1700 socket ensuring optimal compatibility and performance
2. Memory
-
Dual-channel DDR4 architecture supporting high-frequency memory modules
-
XMP (Extreme Memory Profile) support for simple overclocking
3. Expansion & Storage
-
PCIe 4.0 x16 slot for the latest high-bandwidth graphics cards
-
Dual PCIe 4.0/3.0 M.2 slots for ultra-fast NVMe SSDs
-
Multiple SATA 6Gb/s ports for additional storage options
4. Connectivity
-
Intel Wi-Fi 6 module for faster, low-latency wireless networking
-
2.5GbE LAN delivering high-speed wired network performance
-
Rear I/O with USB 3.2 Gen 1/Gen 2 ports, plus USB Type-C support
5. Audio & Gaming Enhancements
-
High-definition 8-channel HD audio for immersive gaming sound
-
Noise guard design to reduce interference and deliver clear audio output
6. Thermal Design & Power Delivery
-
Enhanced VRM power architecture for stable CPU performance under load
-
Enlarged heatsinks on power components to maintain system stability
-
Hybrid fan headers with Smart Fan 6 for precise cooling management
7. Build Quality & Aesthetics
-
Ultra Durable components for long-lasting reliability
-
Reinforced PCIe slot to support heavy graphics cards
-
Sleek black PCB with gaming-oriented visual accents
Conclusion
The GIGABYTE B760M GAMING DDR4 delivers everything you need for a powerful yet affordable gaming build. With PCIe 4.0 support, dual M.2 storage, integrated Wi-Fi 6, and dependable DDR4 memory compatibility, this board balances performance, value, and modern connectivity in a compact micro-ATX design.
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B760 |
| MEMORY | SUPPORT FOR DDR4 5333(OC) /5133(OC) /5000(OC) / 4933(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4300(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3800(OC) /3733(OC) /3666(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3300(OC) /3200 /3000 /2933 /2666 /2400 /2133 MT/s MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X VGA PORT, 1 X HDMI PORT, 1 X DISPLAY PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5GBPS/1 GBPS/100 MBPS) |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X16 ,1 X PCI EXPRESS X1 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 3 X SYSTEM FAN HEADERS , 1 X ADDRESSABLE LED STRIP HEADER ,1 X RGB LED STRIP HEADERS , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X S/PDIF OUT HEADER ,1 X SERIAL PORT HEADER , 1 X Q-FLASH PLUS BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

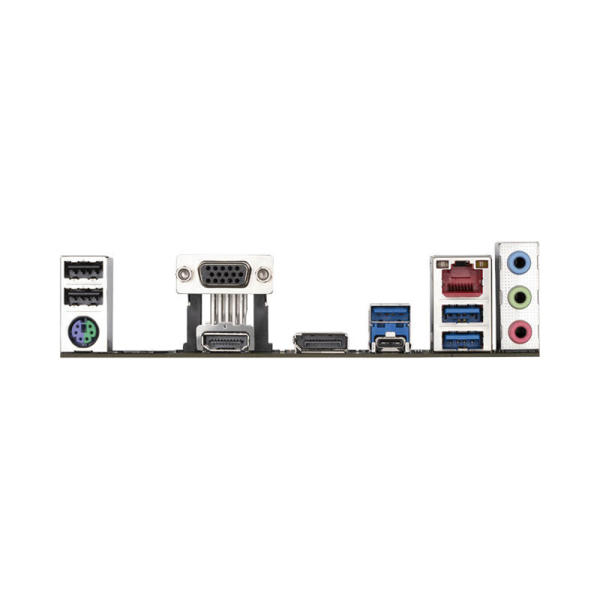

| BACK PANEL CONNECTORS | 2 X USB 2.0/1.1 PORTS , 1 X PS/2 KEYBOARD/MOUSE PORT ,1 X D-SUB PORT, 1 X HDMI PORT , 1 X DISPLAYPORTS , 3 X USB 3.2 GEN 1 PORTS , 1 X USB TYPE-C PORT, WITH USB 3.2 GEN 1 SUPPORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL . SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
