GIGABYTE B760M H DDR4
The GIGABYTE B760M H DDR4 motherboard supports Intel 12th to 14th Gen processors, dual-channel DDR4 memory, PCIe 4.0, M.2 storage, high-speed connectivity, and essential features, offering stable performance for everyday computing.
Features
Detailed Specifications & Features
1. CPU Compatibility & Power Delivery
-
Designed for Intel’s LGA 1700 socket, this board supports 12th, 13th, and even 14th Gen Intel Core, Pentium Gold, and Celeron processors
-
Features a hybrid 6+1+1 phase digital VRM design, using low-RDS(on) MOSFETs and high-quality chokes and capacitors to ensure stable voltage delivery and efficient power management
2. Memory Support
-
Offers dual-channel DDR4 support via two DIMM slots, with compatibility for up to 64 GB total (32 GB per slot)
-
Supports a broad range of DDR4 memory speeds: 2133 MHz to 3200 MHz, including XMP profiles for easy overclocking
3. Expansion & Storage
-
1 × PCIe 4.0 ×16 slot (with EZ-Latch mechanism for quick and secure GPU installation/removal) and 1 × PCIe 3.0 ×1 slot for expansion needs Storage includes:
-
-
2 × M.2 connectors, both supporting PCIe 4.0 ×4 SSDs for high-speed NVMe storage
-
4 × SATA 6 Gb/s ports, with RAID 0, 1, 5, and 10 support
-
4. Connectivity & I/O
-

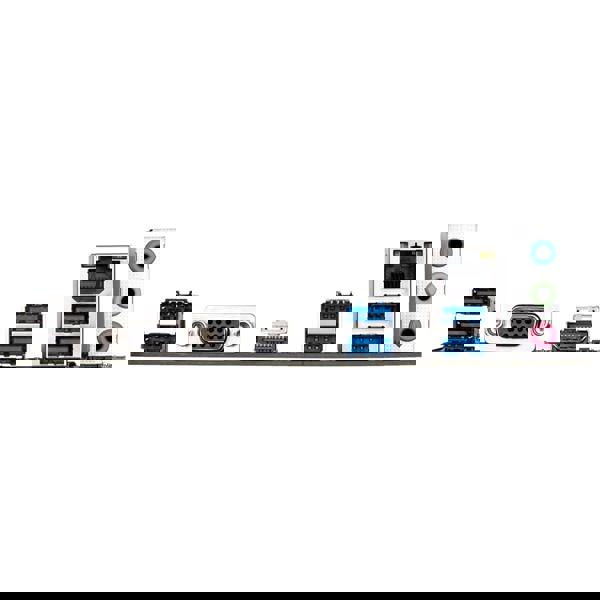

Rear I/O includes:
-
Video ports: HDMI (up to 4K@60 Hz with HDCP 2.3 and HDMI 2.1 TMDS compatibility) and D-Sub (up to 1920×1200@60 Hz)
-
USB ports: 4 × USB 3.2 Gen 1 and 2 × USB 2.0 on the back panel, with additional internal headers available
-
Realtek GbE LAN (1 Gbps) for reliable wired networking
-
Audio via Realtek HD codec supporting 2/4/5.1/7.1 channels and S/PDIF output
-
5. Cooling & Thermal Management
-
Integrated Smart Fan 6 technology:
-
Multiple temperature sensors and hybrid fan headers support both PWM and DC fans, with up to 24 W output and over-current protection.
-
Dual curve (Slope/Stair) fan profiles and a “Fan Stop” feature enable automated control for optimal cooling with minimal noise
-
6. Board Management & Features
-
Includes PCIe EZ-Latch for easier GPU insertion/removal
-
Supports Q-Flash for BIOS updates without needing CPU, memory, or GPU installed—great for troubleshooting and upgrades
-
GIGABYTE Control Center (GCC) provides unified software utilities for hardware monitoring, updates, and lighting customization
7. Form Factor & OS Support
-
Compact Micro-ATX board, measuring approximately 23.0 × 21.5 cm
-
Fully compatible with Windows 10 and Windows 11 (64-bit)
-
Backed by a 3-year warranty (region-dependent)
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B760 |
| MEMORY | SUPPORT FOR DDR4 3200/3000/2933/2666/2400/2133 MT/s MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK GbE LAN CHIP (1 GBPS/100 MBPS) |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X16 ,1 X PCI EXPRESS X1 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 2 X SYSTEM FAN HEADERS ,1 X RGB LED STRIP HEADERS , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X S/PDIF OUT HEADER ,1 X SERIAL PORT HEADER , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |
| BACK PANEL CONNECTORS | 2 X USB 2.0/1.1 PORTS , 1 X D-SUB PORT, 1 X HDMI PORT , , 4 X USB 3.2 GEN 1 PORTS , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL . SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS , SUPPORT FOR Q-FLASH |
