GIGABYTE B760M DS3H DDR5
The GIGABYTE B760M DS3H DDR5 motherboard supports Intel 12th–14th Gen CPUs, high-speed DDR5 memory, PCIe 4.0, dual M.2 with Thermal Guard, 2.5GbE LAN, and Smart Fan 6, delivering stable performance for gaming and productivity.
Features
1. CPU Compatibility & Power Delivery
-
Supports Intel LGA 1700 socket for 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors
-
Features a 6+2+1 phases hybrid digital VRM, with low-RDS(on) MOSFETs and premium chokes/capacitors for stable power delivery and responsive performance
2. Memory Support
-
Equipped with 4 DDR5 DIMM slots in a dual-channel configuration.
-
Supports memory overclocking (XMP) up to DDR5-7600 (OC) and potentially beyond
-
Maximum memory capacity is 128 GB (32 GB per DIMM)
3. Expansion & Storage
-
Offers a PCIe 4.0 ×16 slot with PCIe EZ-Latch for easy GPU installation/removal
-
Two PCIe 4.0 ×4 M.2 slots for ultra-fast NVMe SSDs, both with M.2 Thermal Guard to reduce thermal throttling
-
Includes 4 × SATA 6 Gb/s ports with RAID 0/1/5/10 support
4. Connectivity & I/O
-
Rear I/O panel includes:
-
1 × USB-C (USB 3.2 Gen 2), multiple USB 3.2 Gen 1 and USB 2.0 ports
-
Display outputs: HDMI, D-Sub, and 2 × DisplayPort, supporting multi-monitor use
-
Realtek 2.5GbE LAN for high-speed wired networking
-
-
Integrated Realtek HD audio codec supports up to 7.1-channel surround and includes SPDIF output
5. Cooling & Thermal Management
-
Supports Smart Fan 6 technology: multiple sensors, hybrid fan/PWM headers, and a Fan Stop feature for quiet operation
-
M.2 Thermal Guard helps maintain SSD performance under heavy load
6. BIOS & DIY Features
-
Features Q-Flash Plus, allowing BIOS updates without installing CPU, memory, or GPU—a handy tool for easy updates or troubleshooting
7. Monitoring & Software
-
Compatible with GIGABYTE Control Center (GCC) software for system monitoring, tweaking, and fan control
-
Includes PerfDrive technology: optimized BIOS settings to manage performance, power, and thermals efficiently (especially with 13th Gen Intel CPUs)
8. Form Factor, OS Support & Warranty
-
Micro-ATX form factor, approximately 24.4 × 24.4 cm, ideal for compact builds
-
Supports Windows 10 and 11 (64-bit)
-
Comes with a 3-year limited warranty depending on the region
Specifications
| CPU | LGA1700 SOCKET SUPPORT FOR THE 14TH , 13TH AND 12TH GENERATION INTEL CORE , PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | B760 |
| MEMORY | SUPPORT FOR DDR5 UPTO 7600(OC) MT/s MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5GBPS/1 GBPS/100 MBPS) |
| AUDIO | REALTEK AUDIO CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X16 ,2 X PCI EXPRESS X1 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 M KEY , TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2280 PCIe 4.0 X4/X2 SSD SUPPORT (M2P_SB ) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 3 X SYSTEM FAN HEADERS ,1 X ADDRESSABLE LED STRIP HEADER , 1 X RGB LED STRIP HEADERS , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X S/PDIF OUT HEADER ,1 X SERIAL PORT HEADER ,1 X PARALLEL PORT HEADER , 1 X Q-FLASH BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

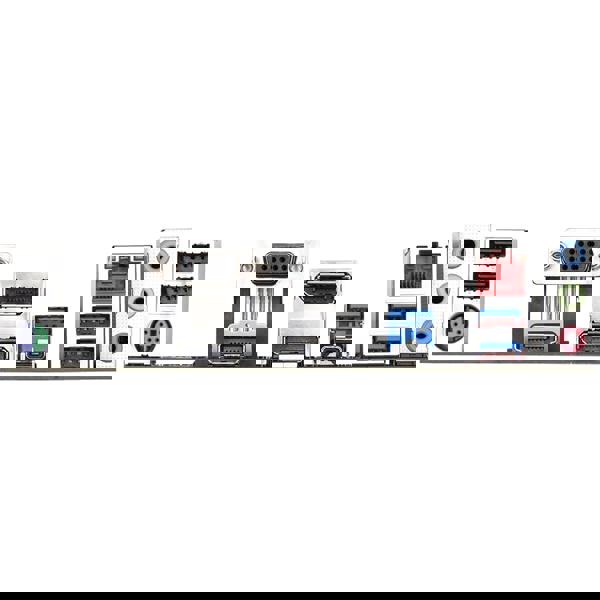

| BACK PANEL CONNECTORS | 2 X USB 2.0/1.1 PORTS ,1 X PS/2 KEYBOARD/MOUSE PORT , 1 X D-SUB PORT, 1 X HDMI PORT ,2 X DISPLAY PORT, 3 X USB 3.2 GEN 1 PORTS ,1 X USB TYPE-C PORT, WITH USB 3.2 GEN 2 SUPPORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL . SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
