Features

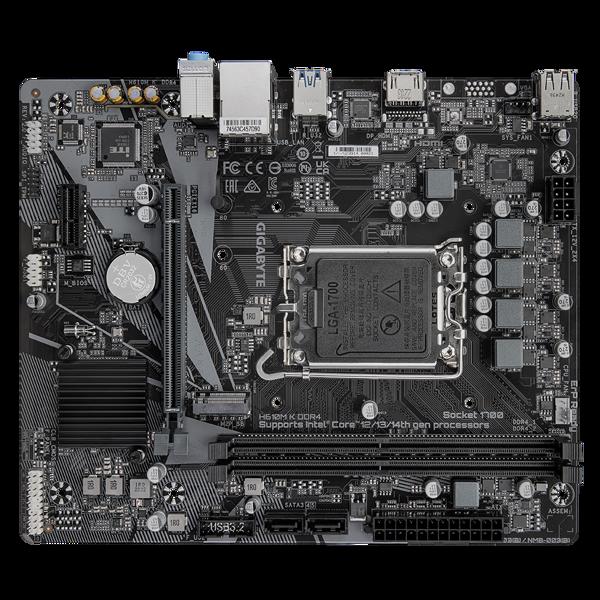

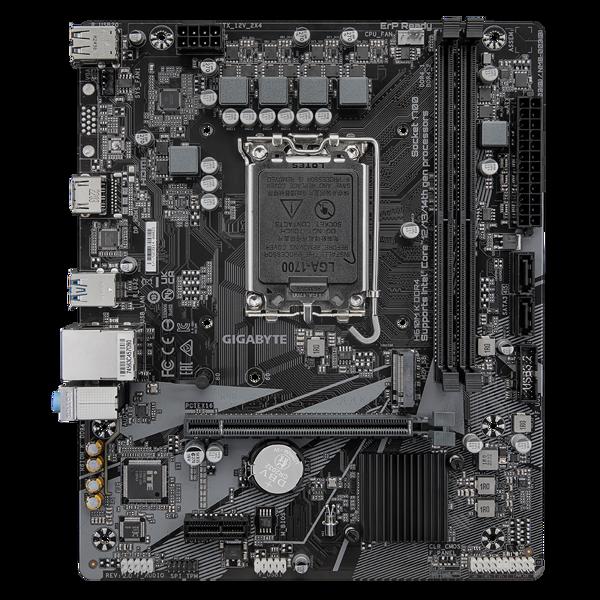

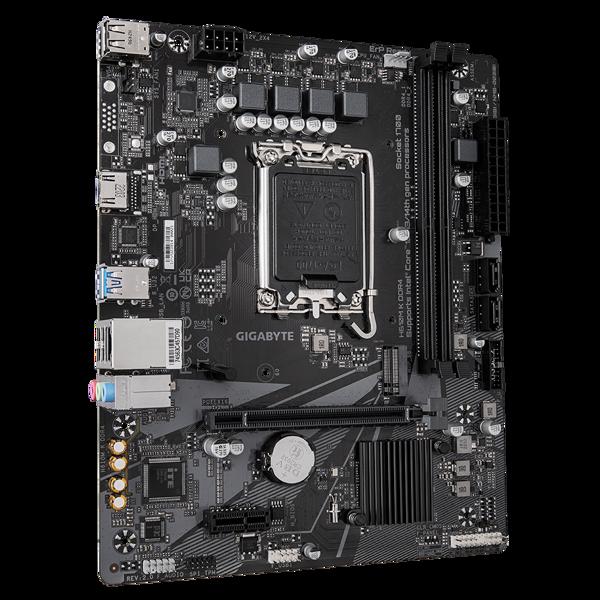

The GIGABYTE H610M K DDR4 is a Micro-ATX motherboard built for 12th to 14th Generation Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket. Based on the Intel H610 chipset, it delivers reliable performance, modern connectivity, and essential features for budget-friendly PCs suited for home, office, and light gaming.

Processor & Chipset Support

• Supports 12th Gen to 14th Gen Intel processors.

• Powered by the Intel H610 chipset, designed for efficient system operation.

Memory

• 2 x DDR4 DIMM slots, dual-channel architecture.

• Supports up to 64 GB DDR4 RAM.

• Maximum supported speed: 3200 MHz (with selected CPUs).

Expansion & Graphics

• 1 x PCIe 4.0 x16 slot for discrete graphics cards.

• 1 x PCIe 3.0 x1 slot for add-on expansion cards.

• Integrated graphics support via Intel UHD Graphics with outputs:

  • 1 x HDMI port (up to 4K resolution at 60Hz).

  • 1 x D-Sub (VGA) port (up to 1920x1200 resolution).

Storage

• 1 x M.2 slot (PCIe 3.0 x4/SATA) for high-speed SSDs.

• 4 x SATA 6Gb/s ports for HDDs and SSDs.

Networking & Audio

• Integrated Realtek Gigabit LAN for fast and reliable wired connections.

• Realtek 8-channel HD Audio codec for clear and immersive sound quality.

Connectivity & Rear I/O

• USB Ports:

  • 4 x USB 3.2 Gen 1.

  • 6 x USB 2.0.

• Rear Panel Includes:

  • HDMI and D-Sub display outputs.

  • 3 x Audio jacks.

  • 1 x RJ-45 Gigabit LAN port.

  • 1 x PS/2 combo port for legacy peripherals.

Cooling & Durability

• Smart Fan 6 technology with multiple sensors and hybrid fan headers.

• Fan Stop feature for quieter operation under low load.

• GIGABYTE Ultra Durable design, including high-quality capacitors, solid pin power connectors, and protection against humidity and power surges.

BIOS & Utility

• Q-Flash utility for easy BIOS updates without requiring an operating system.

• Simple and intuitive BIOS interface for setup and tuning.

Form Factor & Build

• Compact Micro-ATX form factor (22.6 cm x 18.5 cm).

• Ideal for smaller cases without sacrificing expandability.

Conclusion

The GIGABYTE H610M K DDR4 is a dependable and cost-efficient motherboard that combines support for 12th and 13th Gen Intel CPUs, DDR4 memory, PCIe 4.0, M.2 storage, Gigabit LAN, and Smart Fan 6, making it a solid foundation for everyday computing.
