Features

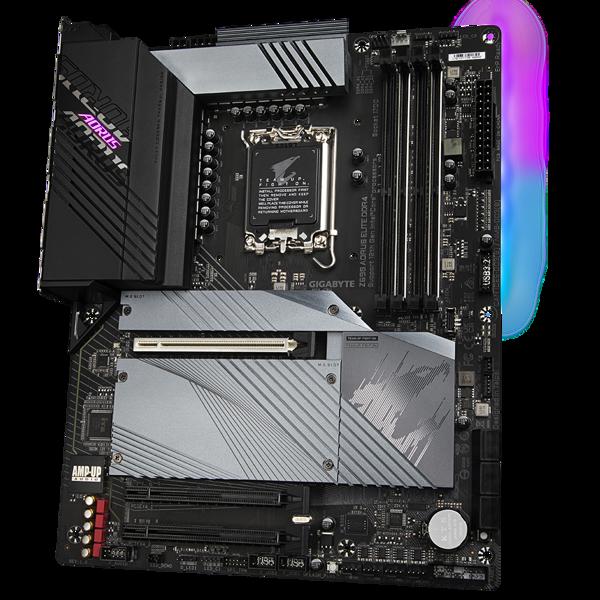

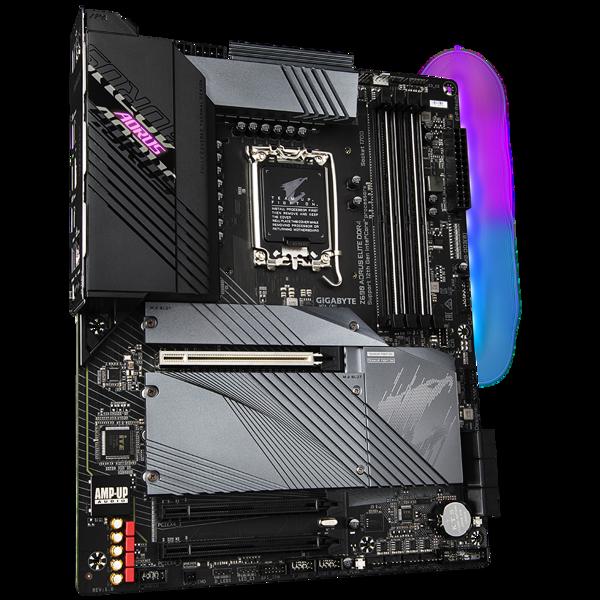

The GIGABYTE Z690 AORUS ELITE DDR4 is a feature-rich ATX motherboard designed for 12th to 14th Gen Intel Core processors on the LGA 1700 socket. Built on the Intel Z690 chipset, it offers next-gen connectivity, robust power delivery, and advanced cooling solutions, making it ideal for high-performance gaming, overclocking, and productivity workloads.

Processor & Chipset Support

• Supports 12th to 14th Gen Intel Core, Pentium Gold, and Celeron processors.

• Powered by the Intel Z690 chipset, ensuring stability and full overclocking capabilities.

Memory

• 4 x DDR4 DIMM slots with dual-channel architecture.

• Supports up to 128 GB DDR4 memory.

• Memory speeds up to 5333 MHz (OC) for high-performance tuning.

Expansion & Graphics

• 1 x PCIe 5.0 x16 slot with reinforced design for modern GPUs.

• 2 x PCIe 3.0 x16 slots (operating at x4/x1).

• Multi-GPU support via AMD CrossFire.

• Integrated Intel UHD Graphics (depending on CPU) with outputs:

  • 1 x HDMI 2.1 port (up to 4K at 60Hz).

Storage

• 4 x M.2 PCIe 4.0 x4 slots, each with thermal guards to prevent throttling.

• 6 x SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support.

Networking & Wireless

• Integrated Intel 2.5GbE LAN for high-speed wired connectivity.

• Optional wireless support via add-on expansion cards (no built-in Wi-Fi).

Audio

• Realtek ALC1220-VB HD Audio codec with high-fidelity sound.

• Premium-grade audio capacitors for studio-quality clarity.

Connectivity & Rear I/O

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C.

  • 2 x USB 3.2 Gen 2 Type-A.

  • 4 x USB 3.2 Gen 1.

  • 6 x USB 2.0.

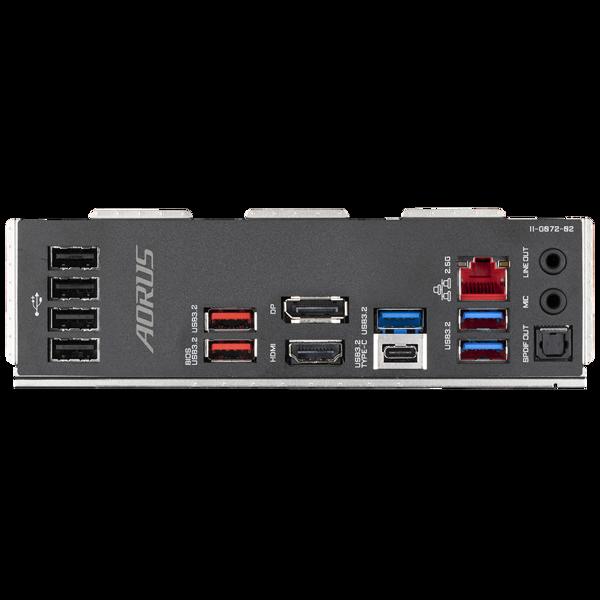

• Rear panel includes:

  • 1 x HDMI port.

  • 1 x RJ-45 2.5GbE LAN port.

  • 5 x Audio jacks + Optical S/PDIF out.

Cooling & Durability

• Advanced Thermal Design with enlarged heatsinks and multi-layer thermal guards.

• Smart Fan 6 technology with multiple sensors and hybrid fan headers.

• Ultra Durable construction including reinforced PCIe slots, solid pin connectors, and surge/humidity protection.

BIOS & Utilities

• Q-Flash Plus allows BIOS updates without CPU, RAM, or GPU installed.

• User-friendly BIOS interface with easy overclocking and system configuration.

• AORUS software suite for system monitoring, RGB Fusion 2.0 lighting control, and performance optimization.

Form Factor & Build

• ATX form factor (30.5 cm x 24.4 cm).

• Aesthetic design with customizable RGB lighting zones for a premium look.

Conclusion

The GIGABYTE Z690 AORUS ELITE DDR4 is a powerful and versatile motherboard built for enthusiasts. With DDR4 memory support, PCIe 5.0, multiple M.2 slots, 2.5GbE LAN, and advanced cooling, it delivers excellent stability, speed, and durability for modern high-performance PCs.
