Features

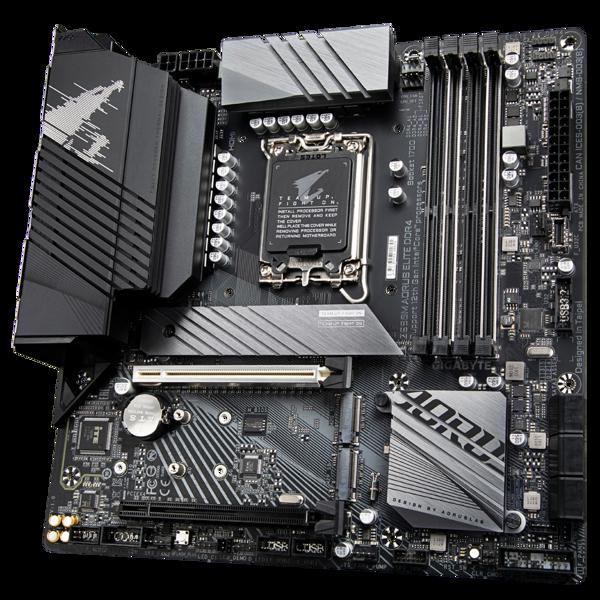

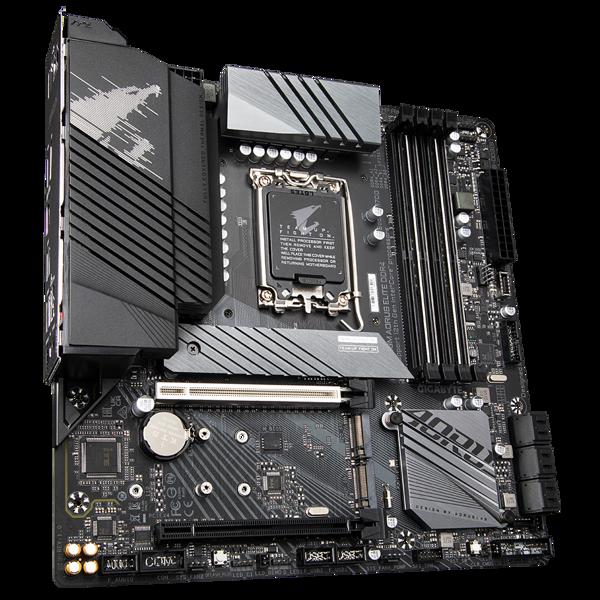

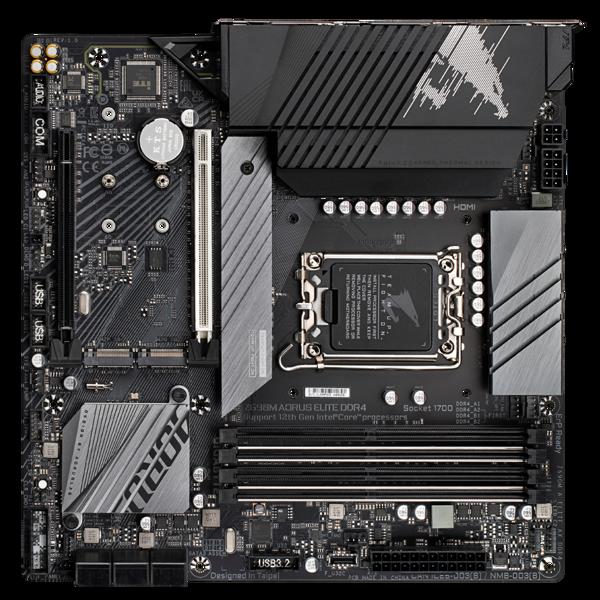

The GIGABYTE Z690M AORUS ELITE DDR4 is a performance-oriented Micro-ATX motherboard built for 12th to 14th Gen Intel Core processors using the LGA 1700 socket. Designed on the Intel Z690 chipset, it combines next-generation features, strong durability, and advanced thermal solutions in a compact form factor, making it ideal for space-saving builds without sacrificing performance.

Processor & Chipset Support

• Supports 12th to 14th Gen Intel Core, Pentium Gold, and Celeron processors.

• Built on the Intel Z690 chipset with full overclocking and tuning capabilities.

Memory

• 4 x DDR4 DIMM slots with dual-channel support.

• Supports up to 128 GB DDR4 RAM.

• Memory speeds up to 5333 MHz (OC) for high-speed computing and gaming.

Expansion & Graphics

• 1 x PCIe 5.0 x16 slot with reinforced armor for GPU stability.

• 1 x PCIe 3.0 x16 slot (x4 mode).

• 1 x PCIe 3.0 x1 slot.

• Integrated Intel UHD Graphics (depending on CPU) with:

  • 1 x HDMI 2.1 port (up to 4K at 60Hz).

  • 1 x DisplayPort 1.2 port.

Storage

• 3 x M.2 PCIe 4.0 x4 slots with thermal guards for high-speed NVMe SSDs.

• 6 x SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support.

Networking

• Integrated Intel 2.5GbE LAN for ultra-fast, stable wired connections.

Audio

• Powered by Realtek ALC897 HD Audio codec.

• High-quality audio capacitors for clear, immersive sound.

Connectivity & Rear I/O

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C.

  • 1 x USB 3.2 Gen 2 Type-A.

  • 2 x USB 3.2 Gen 1.

  • 6 x USB 2.0.

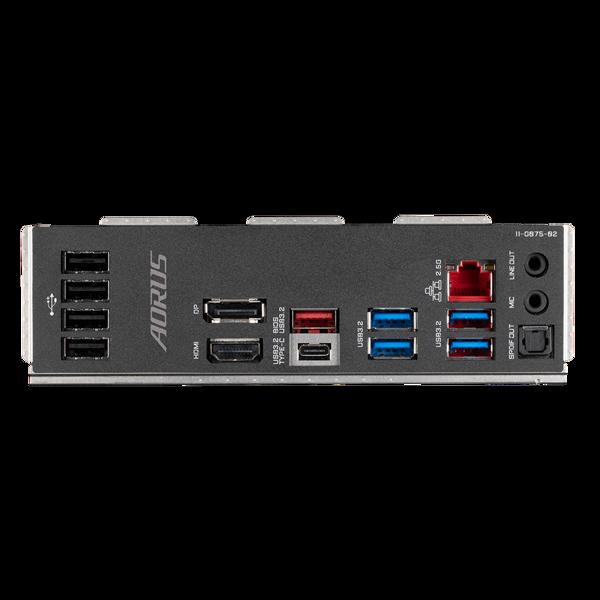

• Rear panel includes:

  • 1 x HDMI port.

  • 1 x DisplayPort.

  • 1 x RJ-45 2.5GbE LAN port.

  • 3 x Audio jacks.

Cooling & Durability

• Advanced Thermal Design with enlarged heatsinks and multi-cut heatsink surfaces for effective heat dissipation.

• Smart Fan 6 with multiple temperature sensors and hybrid fan headers.

• Ultra Durable design, including reinforced PCIe slots, solid pin connectors, and humidity/ESD protection.

BIOS & Utilities

• Q-Flash Plus enables BIOS updates without installing CPU, RAM, or GPU.

• User-friendly BIOS interface with overclocking and tuning options.

• AORUS software suite for monitoring, performance control, and RGB Fusion lighting.

Form Factor & Build

• Micro-ATX form factor (24.4 cm x 24.4 cm).

• Stylish black PCB with customizable RGB Fusion 2.0 lighting.

Conclusion

The GIGABYTE Z690M AORUS ELITE DDR4 offers powerful features in a compact design, making it perfect for high-performance Micro-ATX builds. With DDR4 memory, PCIe 5.0, triple M.2 slots, and 2.5GbE LAN, it balances performance, durability, and style for gaming and productivity.
