Features

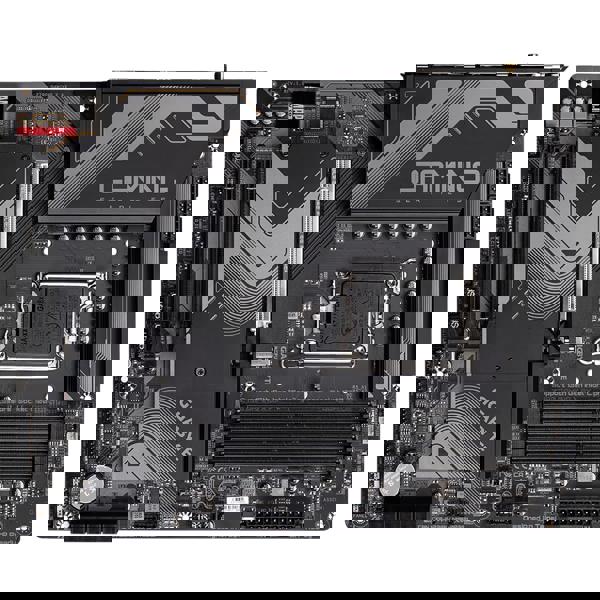

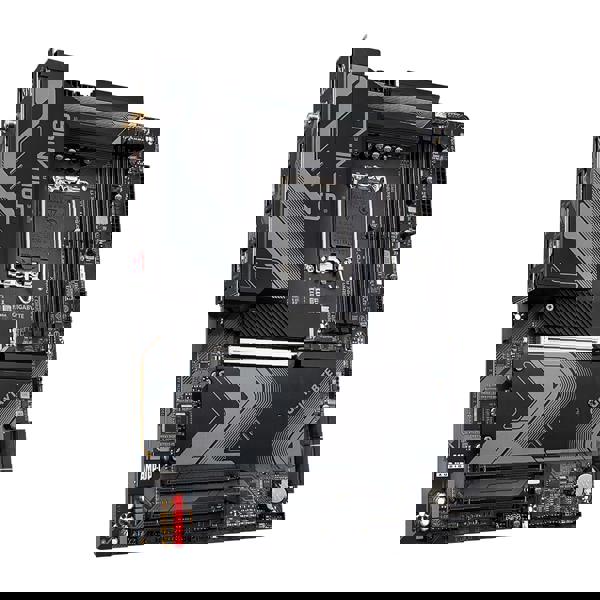

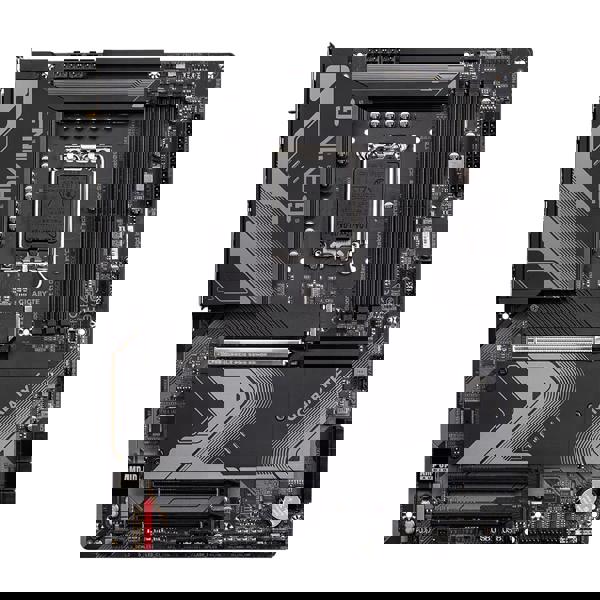

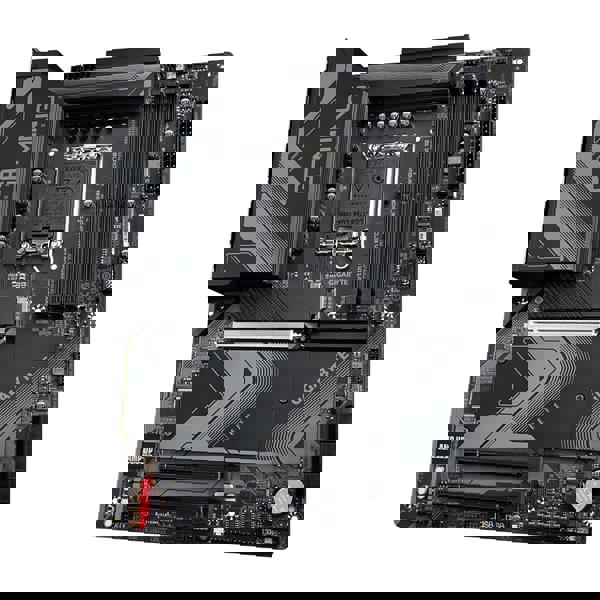

The GIGABYTE Z790 GAMING X AX is an advanced ATX motherboard engineered on the Intel Z790 chipset and LGA1700 socket, blending high-end connectivity, next-generation memory, and robust cooling. It targets gamers and power users who want a future-ready platform with wireless networking included.

Processor & Chipset Support

• Supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors.

• Built on the Intel Z790 chipset, enabling overclocking, PCIe 5.0, and extensive tuning.

Memory

• 4 x DDR5 DIMM slots supporting dual-channel memory architecture.

• Capacity up to 192 GB DDR5.

• High-speed support up to 7600 MHz (OC) for maximum gaming and productivity performance.

Expansion & Graphics

• 1 x PCIe 5.0 x16 slot reinforced for heavy graphics cards.

• 1 x PCIe 4.0 x16 slot (x4 mode).

• 2 x PCIe 3.0 x1 slots for additional expansion cards.

• Integrated Intel UHD Graphics (CPU dependent) with:

  • 1 x HDMI 2.1 port (up to 4K at 60Hz).

  • 1 x DisplayPort 1.2.

Storage

• 3 x M.2 PCIe slots (PCIe 4.0 x4) with thermal guards for high-speed NVMe SSDs.

• 4 x SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10 for flexible storage setups.

Networking & Wireless

• Intel 2.5GbE LAN for stable wired networking.

• Intel Wi-Fi 6E 802.11ax + Bluetooth 5.3 included for high-speed, low-latency wireless connectivity.

Audio

• Realtek HD Audio codec (ALC897/ALC1220-VB depending on revision).

• High-end capacitors ensure crisp and immersive sound quality.

Connectivity & Rear I/O

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C.

  • 2 x USB 3.2 Gen 2 Type-A.

  • 4 x USB 3.2 Gen 1.

  • 4 x USB 2.0.

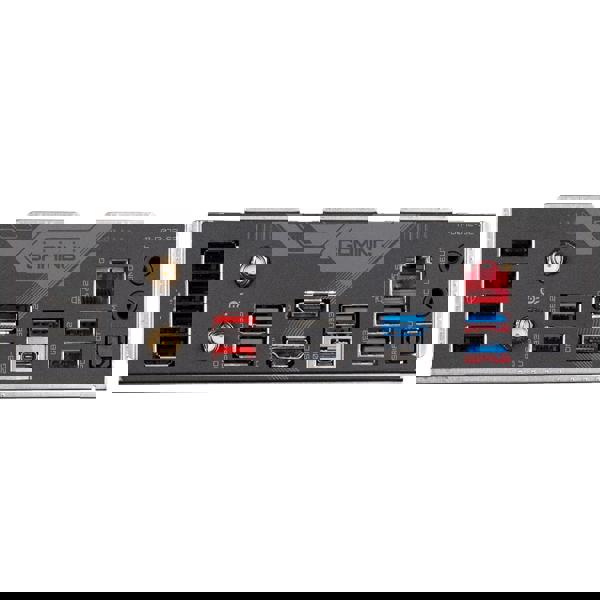

• Rear panel also includes:

  • 1 x HDMI port.

  • 1 x DisplayPort.

  • 1 x RJ-45 2.5GbE LAN port.

  • 2 x Antenna connectors (Wi-Fi 6E).

  • 3 x Audio jacks.

Cooling & Durability

• Advanced Thermal Design with extended heatsinks and M.2 thermal guards.

• Smart Fan 6 with multiple hybrid fan headers and temperature sensors for precise, quiet cooling.

• Ultra Durable build quality with solid pin power connectors and reinforced slots for longevity.

BIOS & Utilities

• Q-Flash Plus allows BIOS updates without installing CPU, RAM, or GPU.

• User-friendly BIOS with overclocking and tuning features.

• GIGABYTE Control Center for performance monitoring, RGB Fusion lighting control, and system management.

Form Factor & Build

• ATX form factor (30.5 cm x 24.4 cm).

• Sleek black PCB with subtle gaming accents and RGB Fusion support for customizable lighting effects.

Conclusion

The GIGABYTE Z790 GAMING X AX adds Wi-Fi 6E and Bluetooth 5.3 to the solid GAMING X platform. With DDR5 support, PCIe 5.0, and comprehensive thermal solutions, it’s ideal for gamers building a high-performance, future-ready PC.
