Features

The GIGABYTE Z790M AORUS ELITE AX is a high-performance micro-ATX motherboard built around the Intel Z790 chipset and LGA1700 socket. Designed for enthusiasts and gamers who need a smaller form factor without compromising performance, it combines next-generation connectivity, fast memory, and advanced cooling.

Processor & Chipset Support

• Supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors.

• Powered by the Intel Z790 chipset, enabling overclocking and high-speed interfaces.

Memory

• 4 x DDR5 DIMM slots supporting dual-channel architecture.

• Capacity up to 192 GB DDR5.

• Overclocked speeds up to 7600 MHz (OC) for cutting-edge performance.

Expansion & Graphics

• 1 x PCIe 5.0 x16 slot with reinforced metal shielding for GPUs.

• 1 x PCIe 4.0 x16 slot (x4 mode).

• 1 x PCIe 3.0 x1 slot for expansion cards.

• Integrated Intel UHD Graphics support (CPU dependent) with:

  • 1 x HDMI 2.1 port (up to 4K at 60Hz).

  • 1 x DisplayPort 1.2.

Storage

• 3 x M.2 PCIe slots (PCIe 4.0 x4) with dedicated thermal guards for NVMe SSDs.

• 4 x SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10.

Networking & Wireless

• Intel 2.5GbE LAN for high-speed wired networking.

• Intel Wi-Fi 6E 802.11ax + Bluetooth 5.3 for stable, low-latency wireless connectivity.

Audio

• Realtek ALC897/ALC1220-VB HD Audio codec (revision dependent).

• High-quality capacitors and audio noise guard for clear, immersive sound.

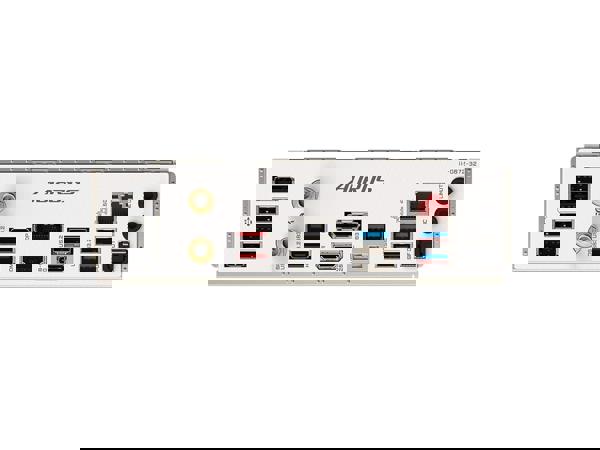

Connectivity & Rear I/O

• USB Ports:

  • 1 x USB 3.2 Gen 2x2 Type-C.

  • 2 x USB 3.2 Gen 2 Type-A.

  • 4 x USB 3.2 Gen 1.

  • 4 x USB 2.0.

• Rear panel also includes:

  • 1 x HDMI port.

  • 1 x DisplayPort.

  • 1 x RJ-45 2.5GbE LAN port.

  • 2 x Antenna connectors (Wi-Fi 6E).

  • 3 x Audio jacks.

Cooling & Durability

• Advanced Thermal Design with extended heatsinks and M.2 thermal guards.

• Smart Fan 6 with hybrid fan headers and multiple temperature sensors for precise cooling control.

• Ultra Durable construction featuring solid pin power connectors, reinforced slots, and multi-layer PCB for longevity.

BIOS & Utilities

• Q-Flash Plus allows BIOS updates without CPU, RAM, or GPU installed.

• User-friendly BIOS with overclocking and tuning options.

• GIGABYTE Control Center for monitoring, RGB Fusion lighting control, and performance optimization.

Form Factor & Build

• micro-ATX form factor (24.4 cm x 24.4 cm).

• Premium black PCB with AORUS-style accents and RGB Fusion support for customizable lighting.

Conclusion

The GIGABYTE Z790M AORUS ELITE AX delivers flagship-level features in a compact size. With DDR5, PCIe 5.0, Gen4 M.2, Wi-Fi 6E, and advanced cooling, it’s perfect for powerful yet space-efficient gaming or creative PC builds.
