GIGABYTE Z890 UD WIFI 6E
The GIGABYTE Z890 UD WIFI6E is an ATX motherboard for Intel Core Ultra (Series 2) CPUs. It features DDR5 support, PCIe 5.0, WiFi-6E, USB4, 3 M.2 slots, premium VRM, and smart cooling designs.
Features
The GIGABYTE Z890 UD WIFI6E is a well-rounded mainstream motherboard designed for the Z890 chipset with LGA 1851 socket, offering modern performance and connectivity without pushing into ultra-premium pricing. It balances strong core features with build quality, ideal for users wanting good upgrade headroom.
Power Delivery & Build Quality
-
Digital twin 12+1+2 phase VRM architecture with high-current DrMOS power stages ensures stable power flow under load.
-
Dual copper PCB layers, premium chokes and capacitors increase thermal efficiency and reliability.
-
Solid pin power connectors: standard 24-pin ATX + dual 8-pin CPU power plug for enhanced stability.
Memory Support
-
Four DDR5 DIMM slots supporting dual-channel memory.
-
Supports high overclocked DDR5 speeds (up to ~8800 MHz in favorable setups).
-
Maximum memory capacity up to 256 GB (64 GB per slot) with XMP/OC memory kits.
Expansion & Storage
-
One PCIe 5.0 ×16 slot ("UD Slot" design) for graphics cards.
-
Additional PCIe 4.0-based slots for expansion cards.
-
Three M.2 storage slots: one PCIe 5.0 ×4 plus two PCIe 4.0 ×4, along with multiple SATA-6 Gb/s ports for legacy or bulk storage.
Connectivity & Networking
-
Integrated WiFi-6E module with Bluetooth 5.3 for wireless connectivity.
-
2.5 Gigabit Ethernet LAN for high-speed wired networks.
-
USB4 Type-C offering high bandwidth + DisplayPort Alt, USB3.2, USB2.0 ports, and DisplayPort output.
-
Front USB headers and EZ-Plug for easier antenna installation.
Thermal & Cooling Features
-
VRM Thermal Armor Advanced to cover MOSFETs and reduce heat under load.
-
M.2 Thermal Guard for cooling NVMe storage, particularly under sustained workloads.
-
EZ-Latch / EZ-Debug and other user-friendly hardware features for simpler installation and maintenance.
Other Features
-
BIOS / firmware support for presets and optimizations including AI-infused performance tuning.
-
Onboard audio (8-channel), RGB headers, onboard buttons (power/reset/Q-Flash), and diagnostic LEDs for better user experience.
-
Ultra Durable class design for long term reliability.
Conclusion
The Z890 UD WIFI6E delivers a strong mix of modern features—PCIe 5.0, DDR5, WiFi-6E, and robust power delivery—at a more accessible level than flagship models. It’s ideal for gamers, content creators, or general tech enthusiasts wanting performance and future-proofing without unnecessary extras. For those who don’t need WiFi-7 or top-tier aesthetic features, this board offers excellent value and capability.
Specifications
| CPU | LGA 1851 SOCKET , SUPPORT FOR INTEL CORE ULTRA PROCESSORS |
|---|---|
| CHIPSET | Z890 |
| MEMORY | SUPPORT FOR DDR5 UPTO 9200 MT/S (OC) MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | 2 X INTEL 2.5GBE LAN CHIPS (2.5GBPS/1GBPS/100 MBPS) INTEL WIFI-6E AX211 (PCB REV.1.0) , REALTEK WIFI 6E RTL8852CE (PCB REV. 1.1) , BLUETOOTH 5.3 |
| AUDIO | REALTEK ALC1220 CODEC , HIGH DEFINITION AUDIO , 2/4/5.1/7.1 CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT, SUPPORTING PCIE 5.0 AND RUNNING AT X16 (PCIEX16) , 2 X PCI EXPRESS X16 SLOTS, SUPPORTING PCIe 4.0 AND RUNNING AT X4 (PCIEX4_1/PCIEX4_2) , 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X1 (PCIEX1) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (SOCKET 3 , M KEY , TYPE 25110/22110/2580/2280 PCIe 5.0 X4/X2 SSD SUPPORT ) (M2A_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY , TYPE 22110/2280 PCIe 4.0 X4/X2 SSD SUPPORT) (M2B_CPU) , 1 X M.2 CONNECTOR (SOCKET 3 , M KEY , TYPE 22110/2280 SATA AND PCIE 4.0 X4/X2 SSD SUPPORT) (M2M_SB) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24- PIN ATX MAIN POWER CONNECTOR , 2 X 8 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER ,1 X CPU FAN/WATER COOLING PUMP HEADER , 2 X SYSTEM FAN HEADERS , 2 X SYSTEM FAN/WATER COOLING PUMP HEADER , 3 X ADDRESSABLE RGB GEN2 LED STRIP HEADERS , 1 X RGB LED STRIP HEADERS , 3 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB TYPE C HEADER , WITH USB 3.2 GEN 1 SUPPORT , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X THUNDERBOLT ADD IN CARD CONNECTORS , 1 X TRUSTED PLATFORM MODULE HEADER (FOR THE GC-TPM2.0 SOI/GC-TPM2.0 SPI 2.0 MODULE ONLY ) 1 X SERIAL PORT HEADER , 1 X POWER BUTTON , 1 X RESET BUTTON , 1 X Q-FLASH PLUS BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

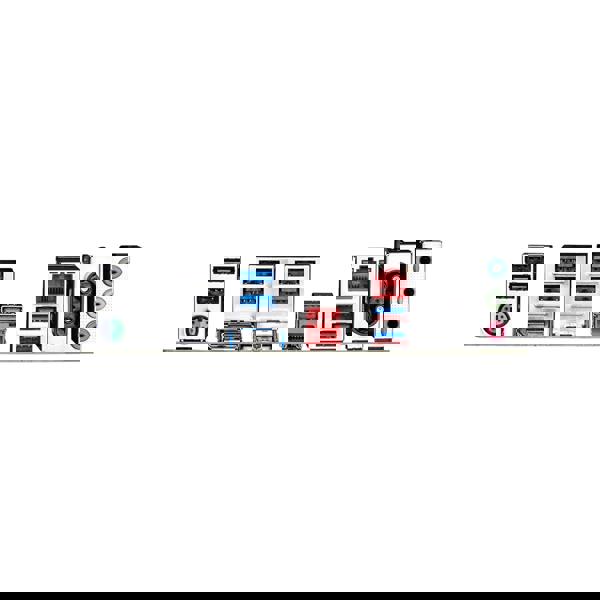

| BACK PANEL CONNECTORS | 4 X USB 2.0/1.1 PORTS , 1 X PS/2 KEYBOARD /MOUSE PORT , 1 X DISPLAY PORT (NOTE) , 4 X USB 3.2 GEN 1 PORTS , 1 X USB4 USB TYPE-C PORT (DISPLAYPORT(NOTE)) , 1 X USB 3.2 GEN 2 TYPE-A PORT (RED) , 1 X RJ-45 , 2 X SMA ANTENNA CONNECTORS (2T2R) , 3 X AUDIO JACKS |
| SIZE | ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , AVAILABLE APPLICATIONS IN GCC MAY VARY BY MOTHERBOARD MODEL , SUPPORTED FUNCTIONS OF EACH APPLICATIONS MAY ALSO VARY DEPENDING ON MOTHERBOARD SPECIFICATIONS. , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS , SUPPORT FOR SMART BACKUP |
