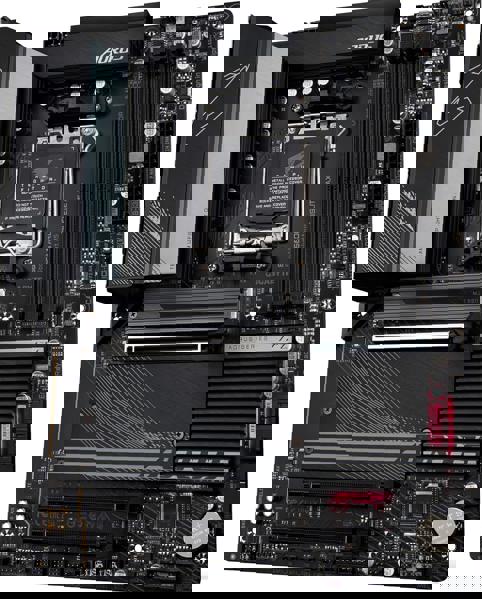

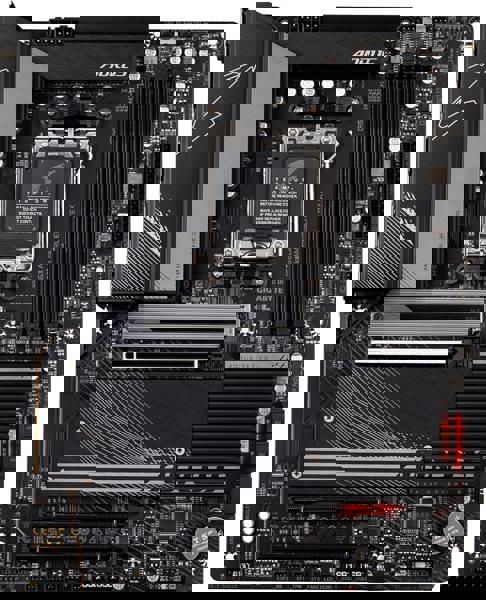

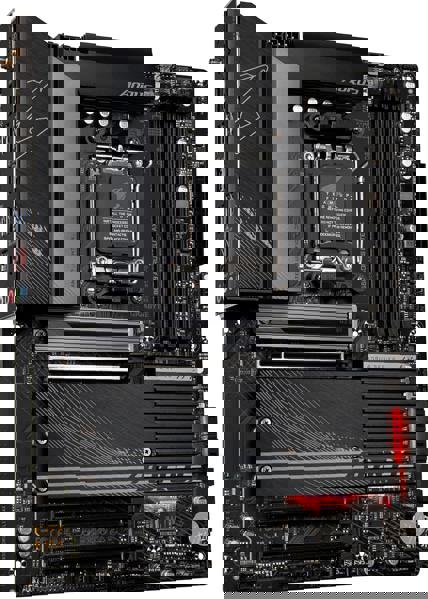

GIGABYTE B650 AORUS PRO AX
The GIGABYTE B650 AORUS PRO AX motherboard supports AMD Ryzen AM5 series processors, featuring DDR5 memory, PCIe 5.0, Wi-Fi 6E, and advanced connectivity. Perfect for gamers and creators seeking high-performance, stable, and future-ready builds.
Features
The GIGABYTE B650 AORUS PRO AX is a high-performance motherboard designed for AMD Ryzen 7000-9000 series processors. With PCIe 5.0 support for next-generation graphics and storage, DDR5 memory compatibility, and integrated Wi-Fi 6E, it ensures fast, reliable connectivity. Robust power delivery, advanced thermal solutions, and multiple storage options provide stability during heavy workloads, while its feature-rich design and premium build quality make it ideal for gaming, content creation, and professional PC builds.
Key Features and Specifications:
-
CPU Support: AMD Ryzen 7000-9000 series processors (AM5 socket)
-
Chipset: AMD B650 chipset with PCIe 5.0 support for graphics and storage
-
Memory: Supports up to 128GB DDR5 RAM with high-speed overclocking
-
Expansion Slots:
-
1 x PCIe 5.0 x16 slot
-
1 x PCIe 4.0 x16 slot
-
Additional PCIe 4.0 x1 slots
-
-
Storage:
-
4 x SATA III ports
-
3 x M.2 slots with PCIe 5.0/4.0 support
-
-
Networking: Intel Wi-Fi 6E and 2.5GbE LAN for fast, reliable connectivity
-
Audio: 7.1-channel HD audio with premium capacitors for clear, immersive sound
-
USB Ports: Multiple USB 3.2 Gen 2, USB Type-C, and USB 2.0 ports for devices and peripherals
-
Thermal Design: Heatsinks and hybrid fan headers for efficient cooling under load
-
BIOS: User-friendly BIOS interface with overclocking, system monitoring, and performance tuning
Conclusion:
The GIGABYTE B650 AORUS PRO AX combines DDR5, PCIe 5.0, Wi-Fi 6E, and advanced connectivity in a robust motherboard. It is perfect for gamers, creators, and PC builders seeking high-performance, reliable, and future-ready systems.
Specifications
| CPU | AMD SOCKET AM5 , SUPPORT FOR:AMD RYZEN 7000 / RYZEN 8000 / RYZEN 9000 SERIES PROCESSORS |
|---|---|
| CHIPSET | B650 |
| MEMORY | SUPPORT FOR DDR5 UP TO 8000(OC) MT/s MEMORY MODULES , 4 X DDR5 DIMM SOCKETS SUPPORTING UP TO 256GB (64GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | INTEL 2.5GBE LAN CHIP (2.5 GBPS/1 GBPS/100 MBPS) , AMD WI-FI 6E RZ616 (MT7922A22M) , BLUETOOTH 5.2 |
| AUDIO | REALTEK ALC1220-VB CODEC HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT (PCIEX16) , 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 4.0 AND RUNNING AT X4 (PCIEX4) , 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 3.0 AND RUNNING AT X1 (PCIEX1) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (M2A_CPU) , 1 X M.2 CONNECTOR (M2B_CPU) , 1 X M.2 CONNECTOR (M2C_SB) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR , 1 X 4 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 1 X WATER COOLING CPU FAN HEADER , 4 X SYSTEM FAN HEADERS , 2 X SYSTEM FAN/WATER COOLING PUMP HEADERS , 2 X ADDRESSABLE LED STRIP HEADERS , 2 X RGB LED STRIP HEADERS , 1 X CPU COOLER LED STRIP /RGB LED STRIP HEADER , 3 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB TYPE-C HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X NOISE DETECTION HEADER , 1 X THB_U4 ADD IN CARD CONNECTOR , 1 X TRUSTED PLATFORM MODULE HEADER , 1 X SERIAL PORT HEADER , 1 X RESET BUTTON , 1 X RESET JUMPER , 2 X TEMPERATURE SENSOR HEADERS , 1 X CLEAR CMOS JUMPER |

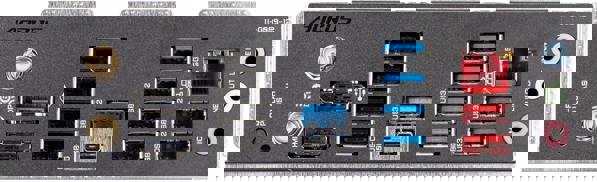

| BACK PANEL CONNECTORS | 1 X Q-FLASH PLUS BUTTON , 2 X SMA ANTENNA CONNECTORS (2T2R) , 4 X USB 2.0/1.1 PORTS , 1 X HDMI PORT , 3 X USB 3.2 GEN 2 TYPE-A PORTS (RED) , 1 X USB TYPE-C PORT , 4 X USB 3.2 GEN 1 PORTS , 1 X RJ-45 PORT , 2 X AUDIO JACKS , 1 X OPTICAL S/PDIF OUT CONNECTOR |
| SIZE | ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
