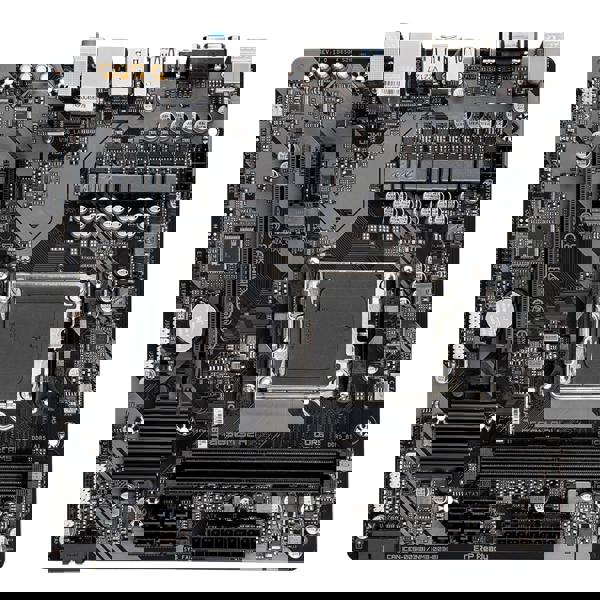

GIGABYTE B650M S2H
The GIGABYTE B650M S2H motherboard supports AMD Ryzen AM5 series processors, featuring DDR5 memory, PCIe 5.0, and reliable connectivity. Ideal for gamers, content creators, and PC builders seeking stable, high-performance, and future-ready systems.
Features
The GIGABYTE B650M S2H is a micro-ATX motherboard built for AMD Ryzen 7000-9000 series processors. With PCIe 5.0 support, DDR5 memory compatibility, and multiple storage options, it ensures fast and stable performance. Efficient power delivery and thermal design guarantee reliable operation under demanding workloads. Its compact form factor and versatile feature set make it suitable for gaming, content creation, and future-proof PC builds.
Key Features and Specifications:
-
CPU Support: AMD Ryzen 7000-9000 series processors (AM5 socket)
-
Chipset: AMD B650 chipset with PCIe 5.0 support for graphics and storage
-
Memory: Supports up to 128GB DDR5 RAM with high-speed overclocking
-
Expansion Slots:
-
1 x PCIe 5.0 x16 slot
-
1 x PCIe 4.0 x16 slot
-
Additional PCIe 4.0 x1 slots
-
-
Storage:
-
4 x SATA III ports
-
3 x M.2 slots with PCIe 5.0/4.0 support
-
-
Networking: Intel Gigabit LAN for reliable wired connectivity
-
Audio: 7.1-channel HD audio with premium capacitors for immersive sound
-
USB Ports: USB 3.2 Gen 2, USB Type-C, and USB 2.0 ports for peripherals
-
Thermal Design: Heatsinks and multiple fan headers for stable cooling
-
BIOS: User-friendly BIOS interface with overclocking, system monitoring, and tuning options
Conclusion:
The GIGABYTE B650M S2H combines DDR5, PCIe 5.0, and robust connectivity in a compact, high-performance motherboard. It is ideal for gamers, content creators, and PC builders seeking reliable, future-ready systems.
Specifications
| CPU | AMD SOCKET AM5, SUPPORT FOR AMD RYZEN 7000 / RYZEN 8000 / RYZEN 9000 SERIES PROCESSORS |
|---|---|
| CHIPSET | B650 |
| MEMORY | SUPPORT FOR DDR5 UP TO 6400(OC) MT/s MEMORY MODULES , 2 X DDR5 DIMM SOCKETS SUPPORTING UP TO 128GB (64GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT , 1 X DISPLAYPORT , 1 X D-SUB PORT |
| LAN + WIFI + BLUETOOTH | REALTEK GBE LAN CHIP (1 GBPS/100 MBPS/10 MBPS) |
| AUDIO | REALTEK AUDIO CODEC HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT (PCIEX16) , 1 X PCI EXPRESS X1 SLOT , SUPPORTING PCIe 3.0 AND RUNNING AT X1 (PCIEX1) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (M2A_CPU) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24-PIN ATX MAIN POWER CONNECTOR , 1 X 8-PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 2 X SYTEM FAN HEADERS , 1 X ADDRESSABLE LED STRIP HEADERS , 1 X RGB LED STRIP HEADERS , 1 X M.2 SOCKET 2 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER , 1 X CLEAR CMOS JUMPER |

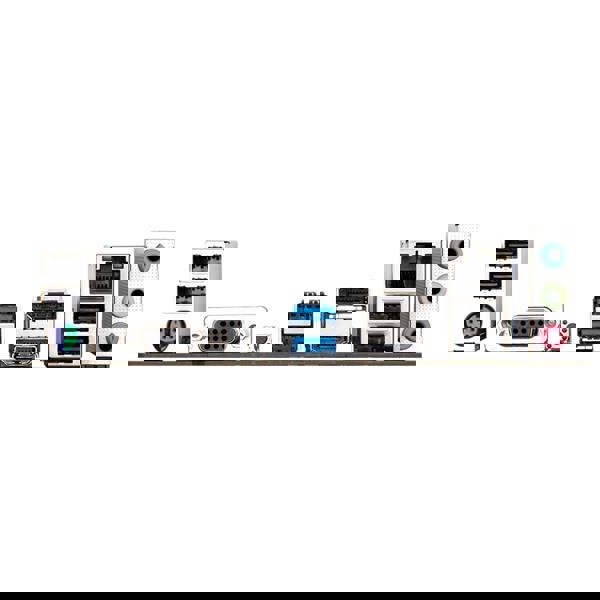

| BACK PANEL CONNECTORS | 4 X USB 2.0/1.1 PORTS , 1 X PS/2 KEYBOARD/MOUSE PORT , 1 X D-SUB PORT , 1 X D-SUB PORT , 1 X Q-FLASH PLUS BUTTON , 2 X USB 3.2 GEN 1 PORTS , 1 X DISPLAYPORT , 1 X HDMI PORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
