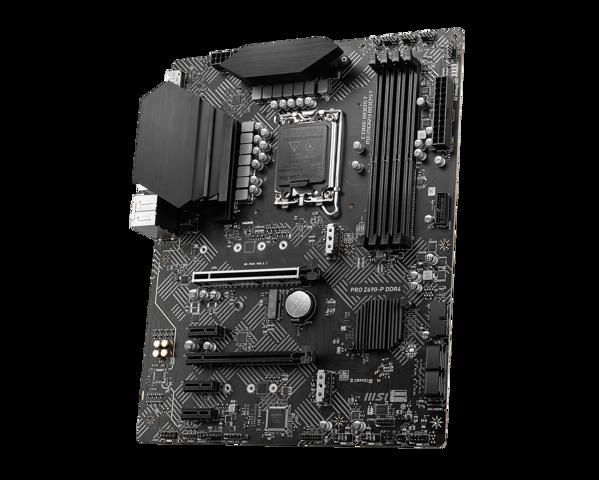

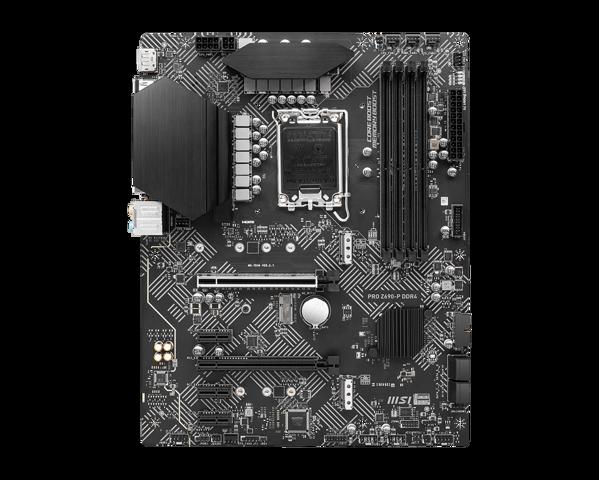

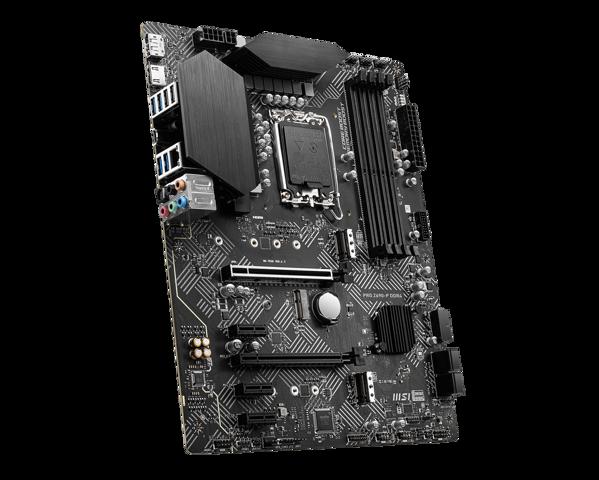

MSI Z690 P DDR4
The MSI Z690 P DDR4 motherboard supports Intel 12th - 14th Gen processors, features PCIe 5.0, DDR4 memory, multiple M.2 slots, robust power delivery, and advanced connectivity, making it ideal for performance-focused gaming and productivity builds.
Features
CPU & Chipset Support
-
Socket: LGA1700, supporting 12th and 13th Gen Intel Core processors.
-
Chipset: Intel Z690 chipset designed for high-performance computing and gaming.
Memory Support
-
Slots: Four DDR4 DIMM slots.
-
Capacity: Up to 128 GB dual-channel DDR4.
-
Speed: Supports DDR4 speeds up to 5200 MHz (OC) for faster application performance and smoother multitasking.
Expansion Slots
-
PCIe: One PCIe 5.0 x16 slot (reinforced with Steel Armor) for the latest GPUs, along with additional PCIe 4.0 slots for expansion cards.
-
Multi-GPU: AMD CrossFire support for dual-GPU configurations.
Storage
-
M.2 Slots: Three M.2 PCIe Gen4 x4 slots for high-speed NVMe SSDs, each with dedicated thermal pads for heat management.
-
SATA Ports: Six SATA 6 Gb/s ports supporting RAID 0, 1, 5, and 10.
Networking
-
LAN: 2.5G LAN for stable, high-speed wired connections.
USB & Connectivity
-
Rear I/O: USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen2/Gen1 ports, and USB 2.0 for various peripherals.
-
Internal Headers: Front USB headers including Type-C for modern case connectivity.
Audio
-
Codec: High-definition 7.1-channel audio powered by Realtek ALC897 with Audio Boost for clear and immersive sound.
-
Design: Isolated audio circuitry reduces interference and enhances sound fidelity.
Cooling & Power Delivery
-
VRM: Enhanced power delivery with 14+1+1 phase design ensures stability under heavy loads.
-
Cooling: Extended heatsinks, optimized thermal pads, and multiple fan headers with pump support for liquid cooling systems.
Form Factor & Build Quality
-
Form Factor: ATX.
-
Durability: Steel Armor PCIe slots, premium PCB layers, and high-quality components ensure long-lasting performance.
-
BIOS: MSI Click BIOS 5 allows intuitive tuning, overclocking, and fan control.
Conclusion
The MSI Z690 P DDR4 is an excellent choice for gamers and content creators seeking reliability, speed, and future-proof features. With PCIe 5.0, multiple M.2 slots, and advanced power delivery, it provides a strong foundation for high-performance PC builds.
Specifications
| CPU | SUPPROTS INTEL CORE 14TH/13TH/12TH GEN PROCESSORS , INTEL PENTIUM GOLD AND CELERON PROCESSORS |
|---|---|
| CHIPSET | Z690 |
| MEMORY | 4 X DDR4 , SUPPORTS UPTO 5333 MT/S |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT , 1 X DISPLAY PORT |
| LAN + WIFI + BLUETOOTH | 1 X REALTEK RTL8125BG 2.5GBPS LAN CONTROLLER |
| AUDIO | REALTEK ALC897 CODEC 7.1-CHANNEL HIGH DEFINITION AUDIO |
| EXPANSION SLOTS | 2 X PCIe X16 SLOTS , PCI_E1 SLOT , SUPPORT PCIe 5.0 X16 , PCI_E3 , SUPPORT PCIe 3.0 X4 , 3 X PCIe 3.0 X1 SLOTS |
| STORAGE INTERFACES | 4 X SATA 6GB/S PORTS (FROM Z690 CHIPSET) , 2 X M.2 SLOTS (KEY M) , SUPPORTS 2242/2260/2280/22110 STORAGE DEVICES |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTORS ,1 X 4-PIN ATX 12V POWER CONNECTOR , 4 X SATA 6GB/S CONNECTORS , 2 X M.2 SLOTS (M-KEY) , 2 X USB 3.2 GEN 1 5GBPS CONNECTORS , 2 X USB 2.0 CONNECTORS , 1 X 4 PIN CPU FAN CONNECTORS , 1 X 4 PIN WATER PUMP FAN CONNECTOR , 4 X 4 PIN SYSTEM FAN CONNECTORS , 1 X FRONT PANEL AUDIO CONNECTOR , 2 X SYSTEM PANEL CONNECTORS , 1 X CHASSIS INTRUSION CONNECTOR , 1 X TPM MODULE CONNECTOR , 1 X CLEAR CMOS JUMPER , 1 X TBT CONNECTOR |

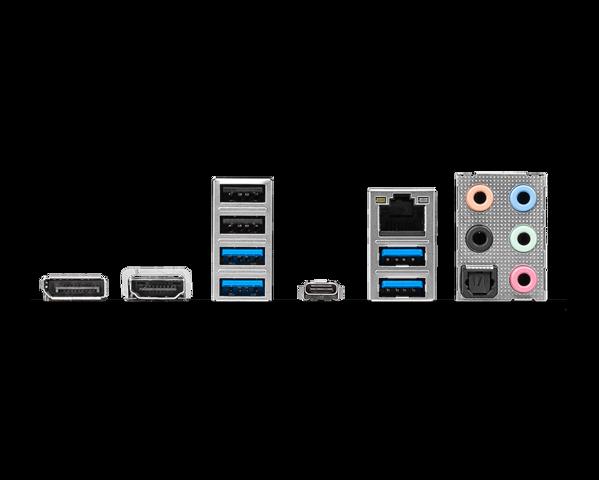

| BACK PANEL CONNECTORS | DISPLAYPORT , HDMI , USB 2.0 , LAN PORT , AUDIO CONNECTORS , USB 3.2 GEN 1 5GBPS TYPE-A , USB 3.2 GEN 2X2 20GBPS TYPE-C , USB 3.2 GEN 1 5GBPS TYPE-A , OPTICAL S/PDIF OUT |
| SIZE | ATX |
| UNIQUE FACTORS |
