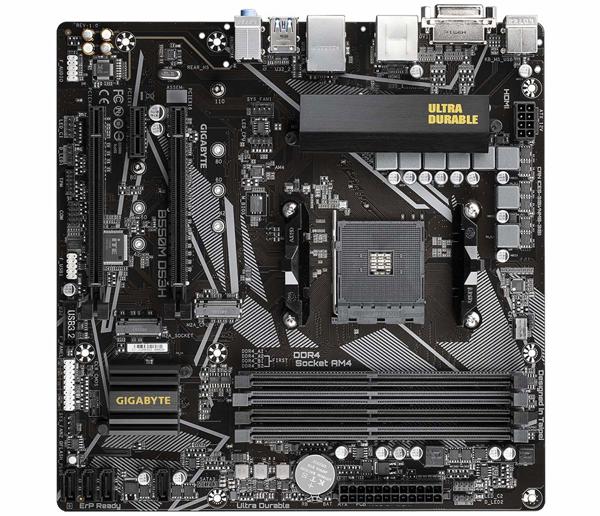

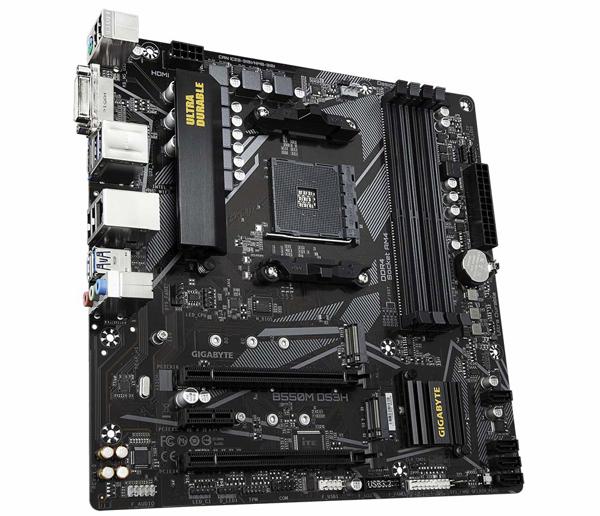

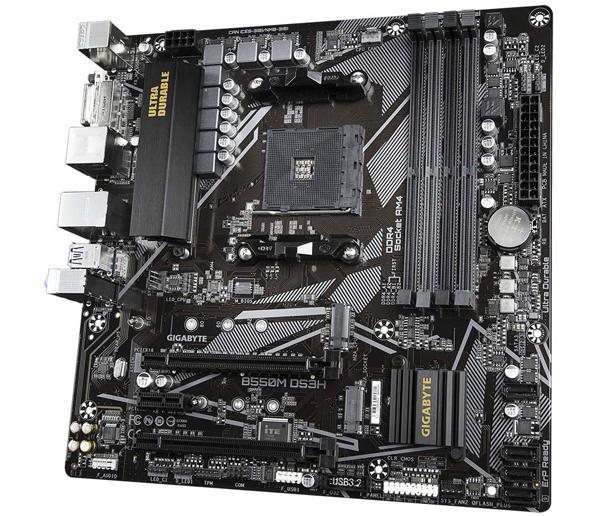

GIGABYTE B550M DS3H
The GIGABYTE B550M DS3H is a budget-friendly micro-ATX motherboard supporting AMD Ryzen processors. With PCIe 4.0, high-speed memory support, and solid connectivity, it delivers reliable performance for gaming, productivity, and everyday computing.
Features
The GIGABYTE B550M DS3H is a cost-effective micro-ATX motherboard designed for AMD Ryzen 3000 and 5000 series processors. It balances affordability with essential gaming and productivity features, offering PCIe 4.0 support, dual M.2 slots, and robust power delivery. Its compact form factor makes it ideal for small builds without sacrificing performance or connectivity.
Key Features and Specifications:
-
CPU Support: Compatible with AMD Ryzen 5000/3000 series processors.
-
Chipset: AMD B550 chipset with PCIe 4.0 support for next-gen graphics cards and NVMe storage.
-
Memory: Supports up to 128GB DDR4 RAM with speeds up to 4733MHz (OC).
-
Expansion Slots:
-
1 x PCIe 4.0 x16 slot
-
1 x PCIe 3.0 x16 slot
-
1 x PCIe 3.0 x1 slot
-
-
Storage:
-
4 x SATA III ports
-
2 x M.2 slots (NVMe PCIe 4.0/3.0)
-
-
Networking: Realtek Gigabit LAN for reliable wired connectivity.
-
Audio: High-definition audio with premium capacitors for clear sound output.
-
USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals and external devices.
-
Thermal Design: Integrated heatsinks and hybrid fan headers for stable operation under load.
-
BIOS: User-friendly BIOS interface with options for overclocking, system monitoring, and tuning.
Conclusion:
The GIGABYTE B550M DS3H is a reliable, budget-conscious motherboard that combines essential features, solid connectivity, and PCIe 4.0 support, making it an excellent choice for gamers and PC builders seeking performance without overspending.
Specifications
| CPU | AMD SOCKET AM4, SUPPORT FOR: AMD RYZEN 5000 SERIES / RYZEN 5000 G-SERIES / RYZEN 4000 G-SERIES , RYZEN 3000 SERIES AND RYZEN 3000 G -SERIES PROCESSORS |
|---|---|
| CHIPSET | B550 |
| MEMORY | 4 X DIMM SOCKETS SUPPORTING UP TO 128GB (32 GB SINGLE DIMM CAPACITY ) OF SYSTEM MEMORY , SUPPORT FOR DDR4 4733(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz MEMORY MODULES |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK GBE LAN CHIP (1 GBPS/100 MBPS) |
| AUDIO | REALTEK AUDIO CODEC HIGH DEFINITION AUDIO 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT (PCIEX16) , 1 X PCI EXPRESS X16 SLOT (PCIEX1_1) , 1 X PCI EXPRESS X16 SLOTS (PCIEX1_2) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (M2A_CPU), INTERGRATED IN THE CPU , SUPPORTING SOCKET 3 M KEY, TYPE 22110/2280 SSD , 1 X M.2 CONNECTOR (M2B_SB), INTERGRATED IN THE CHIPSET, SUPPORTING SOCKET 3 , M KEY TYPE 2280 SSD , 4 X SATA 6GB/S CONNECTORS , INTEGRATED IN THE CHIPSET |
| INTERNAL I/O CONNECTORS | 1 X 24-PIN ATX MAIN POWER CONNECTOR , 1 X 8-PIN ATX 12V POWER CONNEECTOR , 2 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X CPU FAN HEADER , 2 X SYSTEM FAN HEADERS, 1 X FRONT PANEL HEADERS , 1 X FRONT PANEL AUDIO HEADER , WITH USB 3.2 GEN 1 SUPPORT ,1 X USB 3.2 GEN 1 HEADER , 1 X USB 2.0/1.1 HEADERS ,1 X TRUSTED PLATFORM MODULE (TPM) HEADER (2X6 PIN, FOR THE GC-TPM2.0_S MODULE ONLY ) , 1 X CLEAR CMOS JUMPER |
| BACK PANEL CONNECTORS | 1 X PS/2 KEYBOARD/MOUSE PORT , 1 X DVI-D PORT , 1 X DISPLAYPORT , 1 X HDMI PORT , 4 X USB 3.2 GEN 1 PORTS , 4 X USB 2.0/1.1 PORTS , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | MICRO ATX |
| UNIQUE FACTORS | BIOS , EASYTUNE , SMART BACKUP , SYSTEM INFORMATION VIEWER , SUPPORT FOR Q-FLASH PLUS , SUPPORT FOR Q-FLASH , SUPPORT FOR XPRESS INSTALL |
