ASUS X670P WIFI CSM PRIME
The ASUS X670P WiFi CSM Prime motherboard supports AMD Ryzen AM5 series processors, offering PCIe 5.0, DDR5 memory, Wi-Fi 6E, and robust connectivity. Ideal for high-performance gaming, content creation, and future-ready PC builds.
Features
The ASUS X670P WiFi CSM Prime is a premium motherboard designed for AMD Ryzen 7000-9000 series processors. With PCIe 5.0 support, DDR5 memory compatibility, and integrated Wi-Fi 6E, it delivers superior performance, high-speed connectivity, and reliable power delivery. Advanced thermal solutions and multiple storage options ensure stable operation for gaming, productivity, and content creation. Its feature-rich design makes it perfect for building a high-performance, future-proof system.
Key Features and Specifications:
-
CPU Support: Compatible with AMD Ryzen 7000-9000 series processors (AM5 socket).
-
Chipset: AMD X670P chipset with PCIe 5.0 support for graphics and storage.
-
Memory: Supports up to 128GB DDR5 RAM with high-speed overclocking capabilities.
-
Expansion Slots:
-
2 x PCIe 5.0 x16 slots
-
Additional PCIe 4.0 x1 slots for expansion cards
-
-
Storage:
-
Multiple SATA III ports
-
4 x M.2 slots with PCIe 5.0/4.0 support
-
-
Networking: Integrated Intel Wi-Fi 6E and 2.5GbE LAN for fast, reliable connections.
-
Audio: 7.1-channel HD audio with premium capacitors for immersive sound quality.
-
USB Ports: USB 3.2 Gen 2x2, USB Type-C, and USB 3.2 Gen 1 ports for peripherals.
-
Thermal Design: Robust heatsinks, VRM cooling, and multiple fan headers for stable temperatures.
-
BIOS: User-friendly BIOS interface with advanced tuning, overclocking, and system monitoring features.
Conclusion:
The ASUS X670P WiFi CSM Prime combines DDR5, PCIe 5.0, and Wi-Fi 6E support in a feature-rich motherboard, making it ideal for gamers, content creators, and PC enthusiasts seeking high-performance and future-ready reliability.
Specifications
| CPU | AMD SOCKET AM5 FOR AMD RYZEN 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS |
|---|---|
| CHIPSET | X670 |
| MEMORY | 4 X DIMM, MAX. 192GB, DDR5 UP TO 7600+(OC) ECC AND NON-ECC, UNBUFFERED MEMORY |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | 1 X REALTEK 2.5GB ETHERNET , WIFI 6 (802.11 a/b/g/n/ac/ax) , BLUETOOTH V5.2 |
| AUDIO | REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC |
| EXPANSION SLOTS | 1 X PCIe 4.0 x16 SLOT (SUPPORTS X16 MODE) , 1 X PCIe 4.0 x16 SLOT (SUPPORTS X8/X4 MODE ) , 2 X PCIe 4.0 X16 SLOTS , (SUPPORT X4 MODE ) , 1 X PCIe 3.0 X1 SLOT \ |
| STORAGE INTERFACES | 3 X M.2 SLOTS AND 6 X SATA 6GB/S PORTS |
| INTERNAL I/O CONNECTORS | 1 X 4 PIN CPU FAN HEADER , 1 X 4 PIN CPU OPT FAN HEADER , 1 X 4 PIN AIO PUMP HEADER , 3 X 4 PIN CHASSIS FAN HEADERS , 1 X 24 PIN MAIN POWER CONNECTOR , 1 X 8 PIN +12V POWER CONNECTOR , 1 X 4 PIN +12V POWER CONNECTOR , 3 X M.2 SLOTS (KEY M) , 6 X SATA 6GB/S PORTS , 1 X USB 3.2 GEN 1 CONNECTOR , 2 X USB 3.2 GEN 1 HEADERS , 2 X USB 2.0 HEADERS , 3 X ADDRESSABLE GEN 2 HEADERS , 2 X AURA RGB HEADERS , 1 X CLEAR CMOS HEADER , 1 X COM PORT HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X S/PDIF OUT HEADER , 1 X SPI TPM HEADER , 1 X 20-5 PIN SYSTEM PANEL HEADER , 1 X THUNDERBOLT (USB4) HEADER |

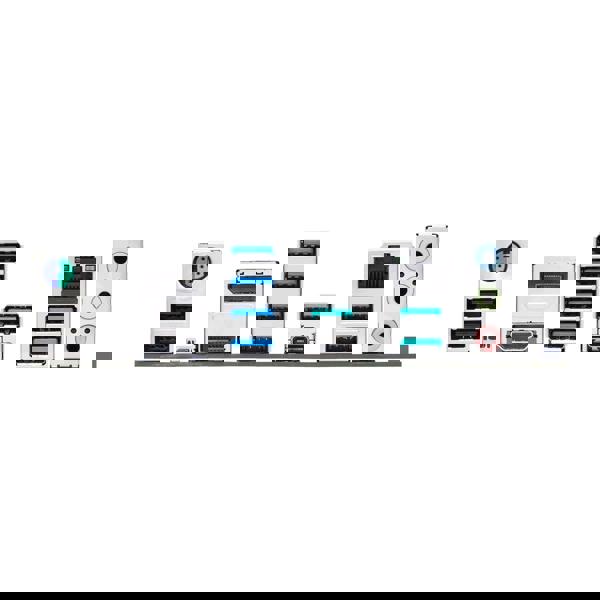

| BACK PANEL CONNECTORS | 1 X USB 3.2 GEN 2X2 PORT , 3 X USB 3.2 GEN 2 PORTS , 4 X USB 3.2 GEN 1 PORTS , 2 X USB 2.0 PORTS , 1 X DISPLAYPORT , 1 X HDMI PORT , 1 X WIFI MODULE , 1 X REALTEK 2.5GB ETHERNET PORT , 3 X AUDIO JACKS , 1 X BIOS FLASHBACK BUTTON , 1 X PS/2 KEYBOARD/MOUSE COMBO PORT |
| SIZE | ATX |
| UNIQUE FACTORS | DIGI+VRM , ESD GUARDS , LANGUARD , OVERVOLTAGE PROTECTION , SAFESLOT CORE+ , STAINLESS-STEEL BACK I/O , M.2 Q-LATCH , Q-DIMM , Q-LED CORE , Q-SLOT , M.2 HEATSINK , VRM HEATSINK DESIGN , BIOS FLASHBACK BUTTON , BIOS FLASHBACK LED , PROCOOL , AURA RGB HEADERS , ADDRESSABLE GEN 2 HEADERS |
