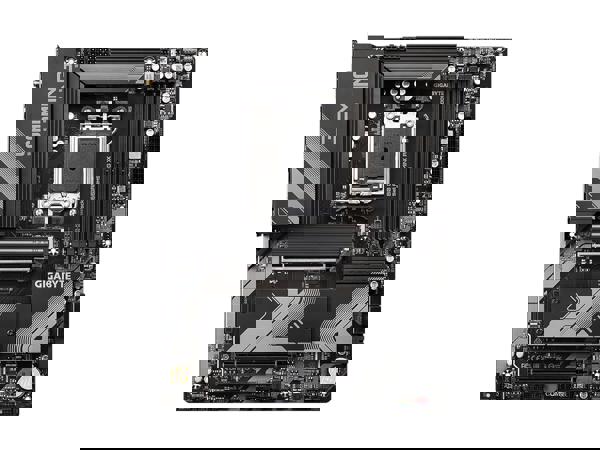

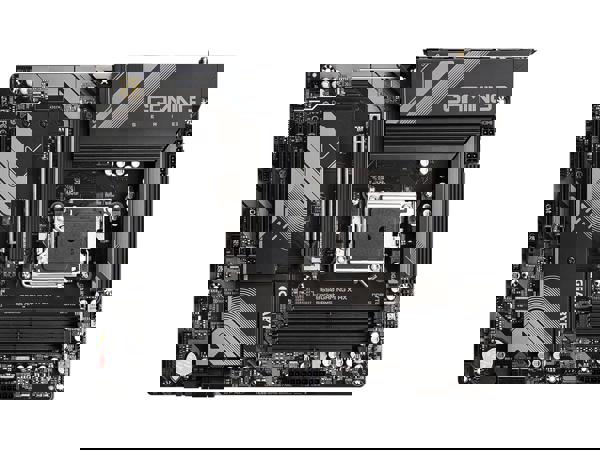

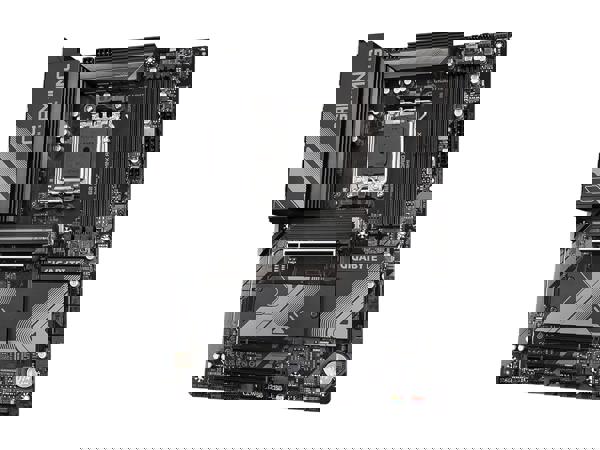

GIGABYTE B650 GAMING X AX
The GIGABYTE B650 GAMING X AX motherboard supports AMD Ryzen AM5 series processors, offering DDR5 memory, PCIe 5.0, Wi-Fi 6E, and high-speed connectivity. Perfect for gamers and creators seeking performance, stability, and future-ready features.
Features
The GIGABYTE B650 GAMING X AX is a high-performance motherboard built for AMD Ryzen 7000-9000 series processors. With PCIe 5.0 for next-generation graphics and storage, DDR5 memory support, and integrated Wi-Fi 6E, it ensures fast, stable performance. Enhanced power delivery, advanced thermal solutions, and multiple storage options provide reliability under heavy workloads, making it an ideal choice for gamers, content creators, and PC builders seeking a future-proof system.
Key Features and Specifications:
-
CPU Support: AMD Ryzen 7000-9000 series processors (AM5 socket)
-
Chipset: AMD B650 chipset with PCIe 5.0 support for graphics and storage
-
Memory: Supports up to 128GB DDR5 RAM with high-speed overclocking
-
Expansion Slots:
-
1 x PCIe 5.0 x16 slot
-
1 x PCIe 4.0 x16 slot
-
Additional PCIe 4.0 x1 slots
-
-
Storage:
-
4 x SATA III ports
-
3 x M.2 slots with PCIe 5.0/4.0 support
-
-
Networking: Intel Wi-Fi 6E and 2.5GbE LAN for high-speed, reliable connectivity
-
Audio: 7.1-channel HD audio with premium capacitors for immersive sound
-
USB Ports: USB 3.2 Gen 2, USB Type-C, and USB 2.0 ports for devices and peripherals
-
Thermal Design: Large heatsinks and multiple fan headers for efficient cooling
-
BIOS: User-friendly BIOS interface with overclocking, system monitoring, and performance tuning
Conclusion:
The GIGABYTE B650 GAMING X AX combines DDR5, PCIe 5.0, and Wi-Fi 6E in a robust, high-performance motherboard. It is perfect for gamers, creators, and PC builders seeking stable, reliable, and future-ready systems.
Specifications
| CPU | AMD SOCKET AM5 , SUPPORT FOR:AMD RYZEN 7000 - 9000 SERIES PROCESSORS |
|---|---|
| CHIPSET | B650 |
| MEMORY | SUPPORT FOR DDR5 UP TO 8000(OC) MT/s MEMORY MODULES , 4 X DDR5 DIMM SOCKETS SUPPORTING UP TO 256GB (64GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT , 1 X DISPLAYPORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5 GBPS/1 GBPS/100 MBPS) , AMD WIFI 6E RZ616 (MT7922A22M) , INTEL WIFI 6E AX210 , BLUETOOTH 5.3 |
| AUDIO | REALTEK AUDIO CODEC HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT (PCIEX16) , 2 X PCI EXPRESS X16 SLOTS , SUPPORTING PCIe 3.0 AND RUNNING AT X1 (PCIEX1_1/2) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (M2A_CPU) , 1 X M.2 CONNECTOR (M2B_CPU) , 1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 25110/22110/2280 PCIe 4.0 X4/X2 SSD SUPPORT ) (M2C_SB) , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24 PIN ATX MAIN POWER CONNECTOR , 1 X 8 PIN ATX 12V POWER CONNECTOR ,1 X 4 PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 1 X WATER COOLING CPU FAN HEADER , 2 X SYSTEM FAN HEADERS , 1 X SYSTEM FAN/WATER COOLING PUMP HEADERS , 2 X ADDRESSABLE RGB GEN2 LED STRIP HEADERS , 2 X RGB LED STRIP HEADERS , 3 X M.2 SOCKET 3 CONNECTORS , 4 X SATA 6GB/S CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB TYPE-C HEADER , 1 X USB 3.2 GEN 1 HEADER , 2 X USB 2.0/1.1 HEADERS , 1 X TRUSTED PLATFORM MODULE HEADER , 1 X SERIAL PORT HEADER , 1 X RESET BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

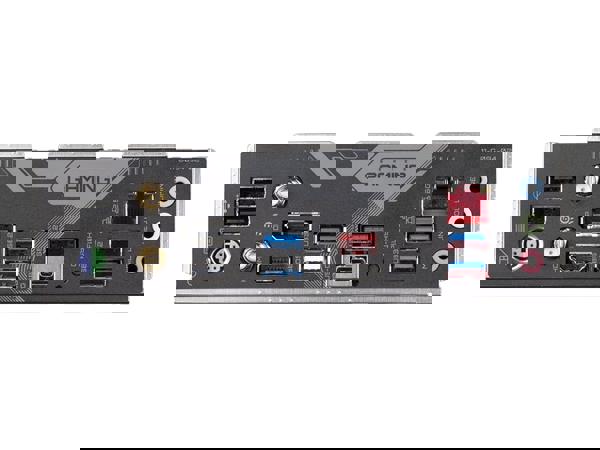

| BACK PANEL CONNECTORS | 2 X SMA ANTENNA CONNECTORS , 1 X Q-FLASH PLUS BUTTON , 1 X DISPALYPORT , 1 X HDMI PORT , 1 X USB TYPE-C PORT , 1 X USB 3.2 GEN 2 TYPE-A PORT (RED) ,3 X USB 3.2 GEN 1 PORTS , 3 X USB 2.0/1.1 PORTS , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS |
