GIGABYTE X670 GAMING X AX V2
The GIGABYTE X670 GAMING X AX V2 motherboard supports AMD Ryzen AM5 series processors, featuring DDR5 memory, PCIe 5.0, Wi-Fi 6E, and high-speed connectivity. Ideal for gamers and creators seeking stable, future-ready performance.
Features
The GIGABYTE X670 GAMING X AX V2 is a high-performance motherboard designed for AMD Ryzen 7000 series processors. With PCIe 5.0 support for next-generation graphics and storage, DDR5 memory compatibility, and integrated Wi-Fi 6E, it provides fast and stable connectivity. Advanced power delivery, efficient thermal solutions, and multiple storage options ensure reliability during heavy workloads. Designed for gamers, content creators, and enthusiasts, it delivers a feature-rich, future-proof platform for high-performance PC builds.
Key Features and Specifications:
-
CPU Support: AMD Ryzen 7000 series processors (AM5 socket)
-
Chipset: AMD X670 chipset with PCIe 5.0 support for graphics and storage
-
Memory: Supports up to 128GB DDR5 RAM with high-speed overclocking
-
Expansion Slots:
-
2 x PCIe 5.0 x16 slots
-
Additional PCIe 4.0 x1 slots for expansion cards
-
-
Storage:
-
4 x SATA III ports
-
4 x M.2 slots with PCIe 5.0/4.0 support
-
-
Networking: Intel Wi-Fi 6E and 2.5GbE LAN for fast, reliable connections
-
Audio: High-definition 7.1-channel audio with premium capacitors for immersive sound
-
USB Ports: USB 3.2 Gen 2, USB Type-C, and USB 2.0 ports for peripherals
-
Thermal Design: Heatsinks and multiple fan headers for efficient cooling
-
BIOS: User-friendly BIOS interface with advanced overclocking, system monitoring, and performance tuning
Conclusion:
The GIGABYTE X670 GAMING X AX V2 combines DDR5, PCIe 5.0, and Wi-Fi 6E in a high-performance motherboard. It is perfect for gamers, content creators, and PC builders seeking stable, reliable, and future-ready systems.
Specifications
| CPU | AMD SOCKET AM5, SUPPORT FOR AMD RYZEN 7000 / RYZEN 8000 / RYZEN 9000 SERIES PROCESSORS |
|---|---|
| CHIPSET | X670 |
| MEMORY | SUPPORT FOR DDR5 UP TO 8000(OC) MT/s MEMORY MODULES , 4 X DDR5 DIMM SOCKETS SUPPORTING UP TO 256GB (64GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY |
| VIDEO OUTPUT PORTS | 1 X HDMI PORT |
| LAN + WIFI + BLUETOOTH | REALTEK 2.5GBE LAN CHIP (2.5 GBPS/1 GBPS/100 MBPS) , REALTEK WI-FI 6E RTL8852CE , BLUETOOTH 5.3 |
| AUDIO | REALTEK AUDIO CODEC HIGH DEFINITION AUDIO , 2/4/5.1/7.1-CHANNEL |
| EXPANSION SLOTS | 1 X PCI EXPRESS X16 SLOT (PCIEX16) , 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 3.0 AND RUNNING AT X4 (PCIEX4) , 1 X PCI EXPRESS X16 SLOT , SUPPORTING PCIe 3.0 AND RUNNING AT X2 (PCIEX2) |
| STORAGE INTERFACES | 1 X M.2 CONNECTOR (M2A_CPU) , 1 X M.2 CONNECTOR (M2B_CPU) 2 X M.2 CONNECTORS , 4 X SATA 6GB/S CONNECTORS |
| INTERNAL I/O CONNECTORS | 1 X 24-PIN ATX MAIN POWER CONNECTOR , 2 X 8-PIN ATX 12V POWER CONNECTOR , 1 X CPU FAN HEADER , 1 X CPU FAN/WATER COOLING PUMP HEADER , 3 X SYSTEM FAN HEADERS , 3 X ADDRESSABLE LED STRIP HEADERS ,1 X RGB LED STRIP HEADERS , 4 X SATA 6GB/S CONNECTORS , 4 X M.2 SOCKET 3 CONNECTORS , 1 X FRONT PANEL HEADER , 1 X FRONT PANEL AUDIO HEADER , 1 X USB TYPE-C HEADER , 2 X USB 3.2 GEN 1 HEADERS , 2 X USB 2.0/1.1 HEADERS , 1 X THB_U4 ADD-IN CARD CONNECTOR , 1 X TRUSTED PLATFORM MODULE HEADER , 1 X POWER BUTTON , 1 X RESET BUTTON , 1 X CLEAR CMOS BUTTON , 1 X RESET JUMPER , 1 X CLEAR CMOS JUMPER |

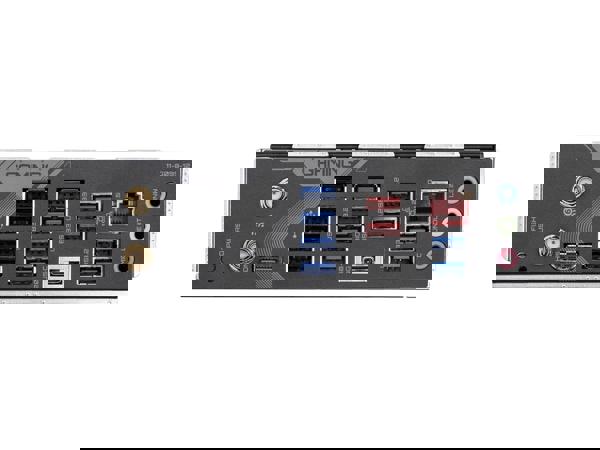

| BACK PANEL CONNECTORS | 1 X Q-FLASH PLUS BUTTON , 2 X SMA ANTENNA CONNECTORS (2T2R) , 1 X HDMI PORT , 6 X USB 3.2 GEN 1 PORTS , 4 X USB 2.0/1.1 PORTS , 2 X USB 3.2 GEN 2 TYPE-A PORTS (RED) , 1 X USB TYPE-C PORT , 1 X RJ-45 PORT , 3 X AUDIO JACKS |
| SIZE | ATX |
| UNIQUE FACTORS | SUPPORT FOR GIGABYTE CONTROL CENTER (GCC) , SUPPORT FOR Q-FLASH , SUPPORT FOR Q-FLASH PLUS , SUPPORT FOR SMART BACKUP |
